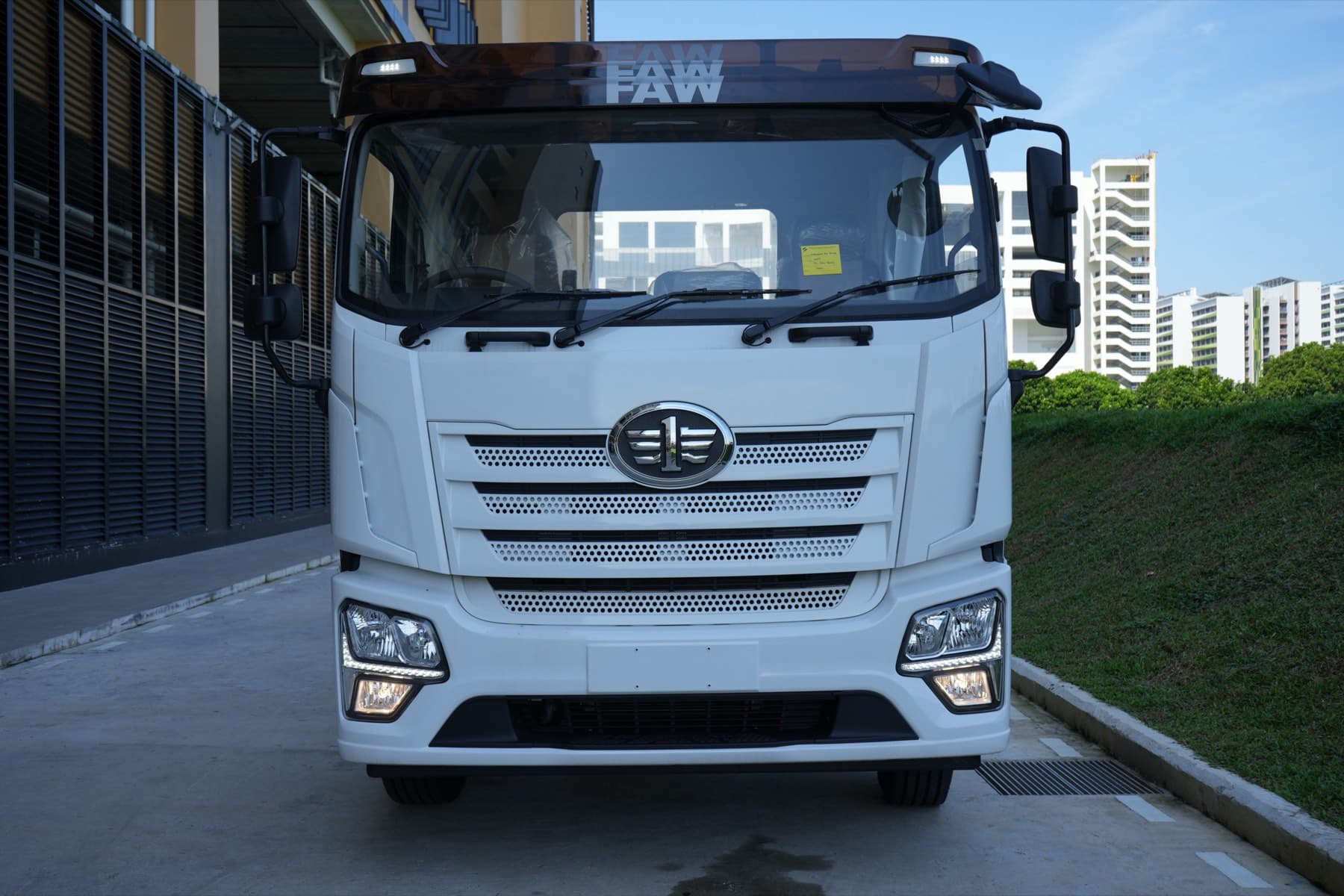

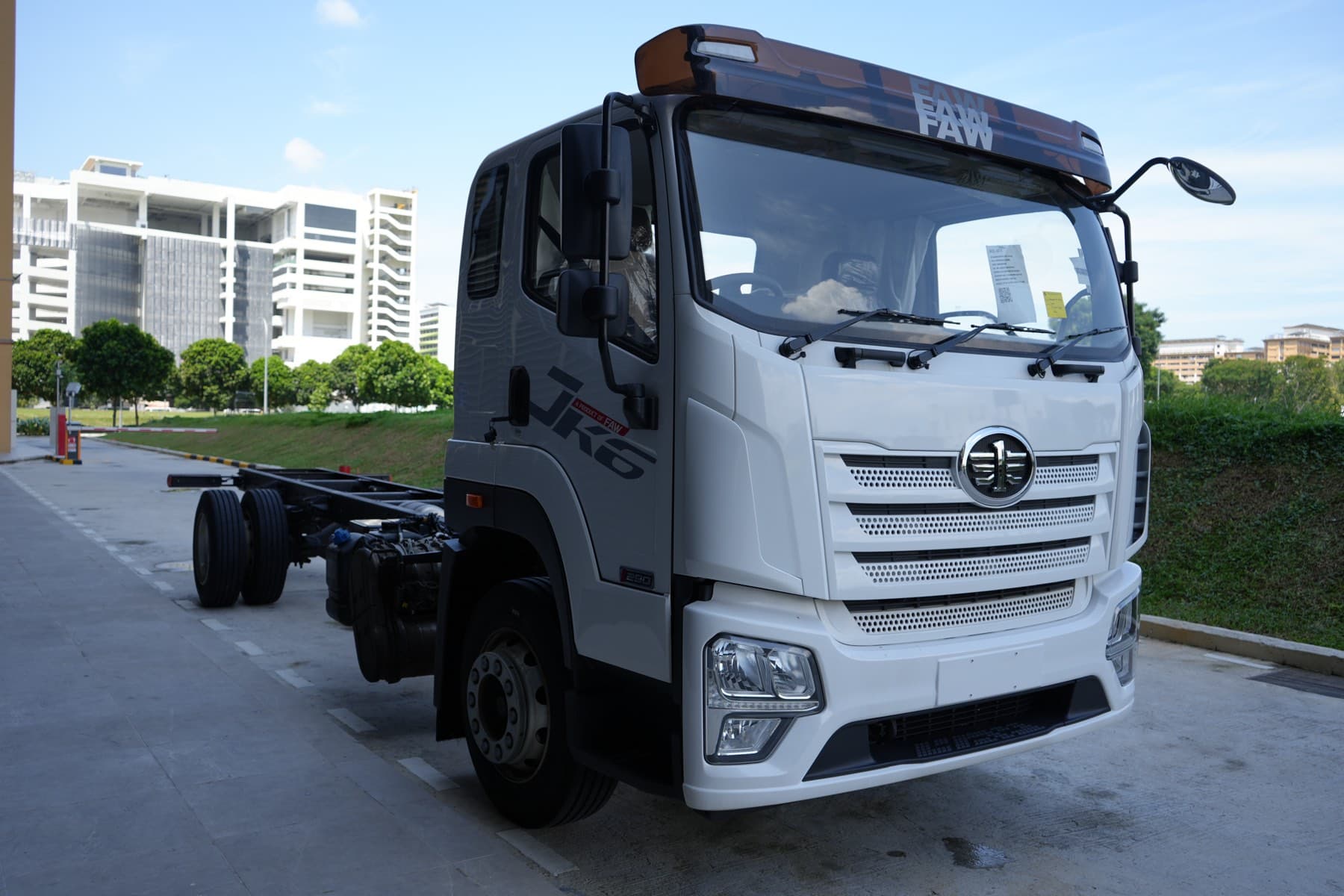

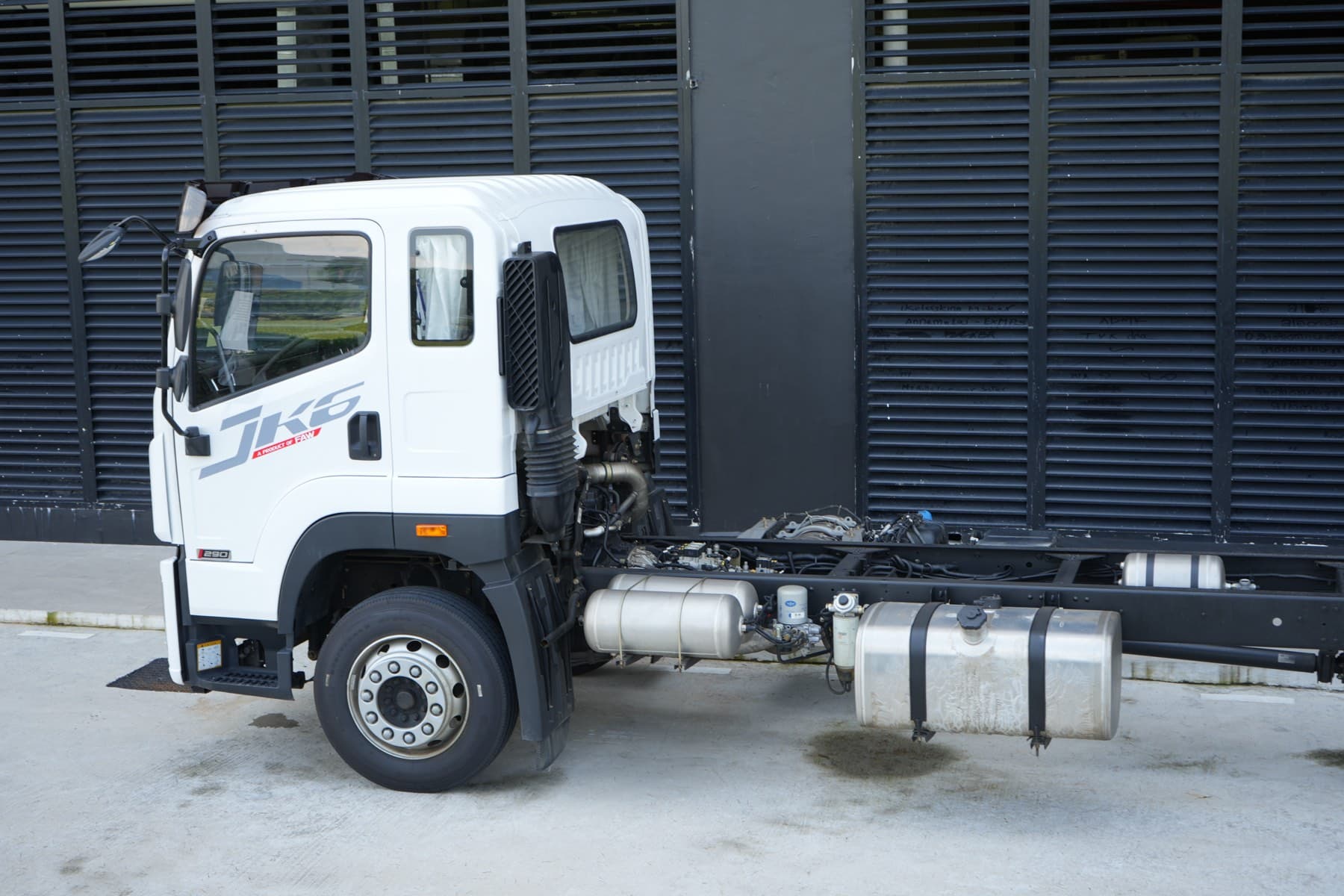

JK6 Medium Truck

JK6 中型卡车

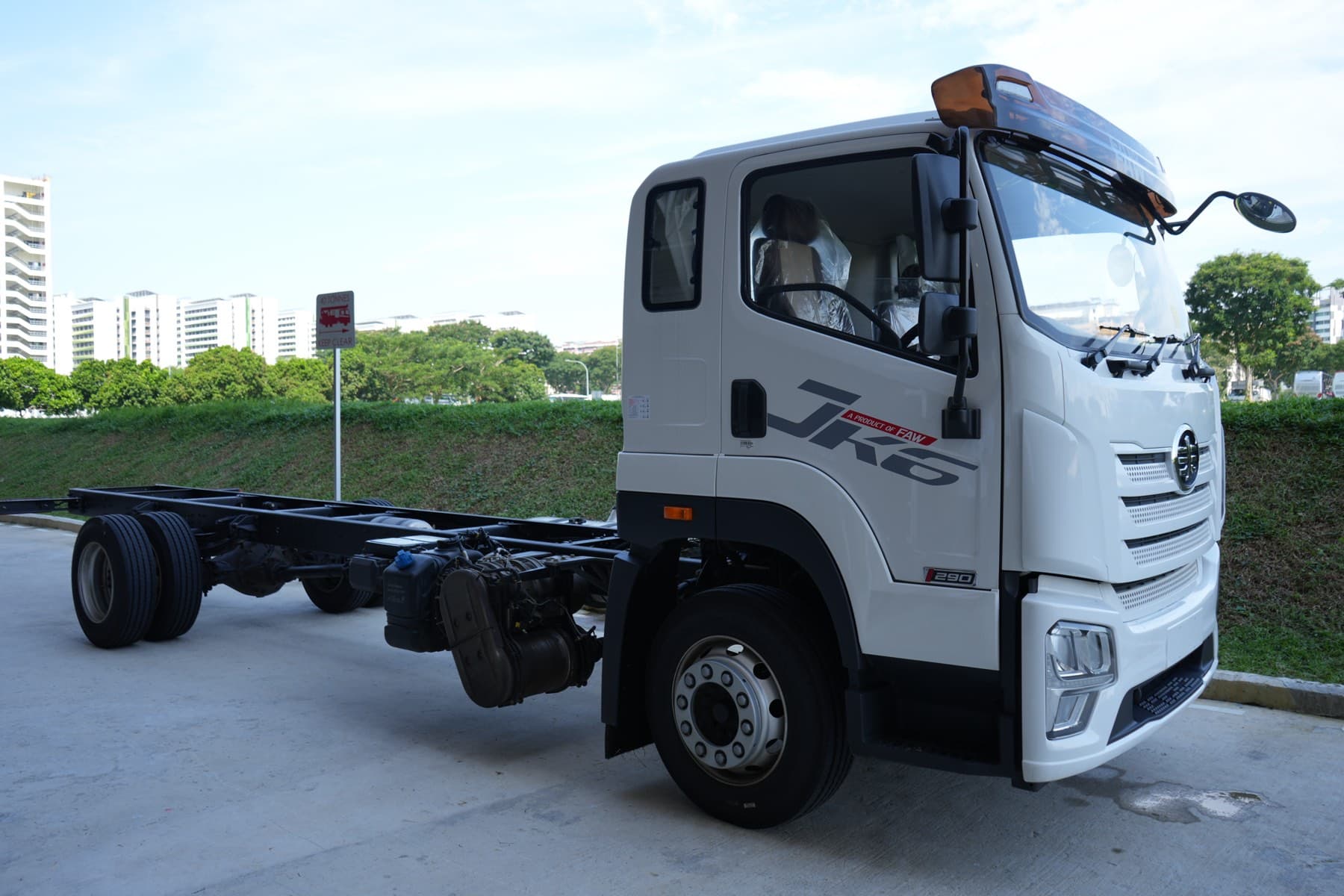

Model code · JK6 4×2型号 · JK6 4×2

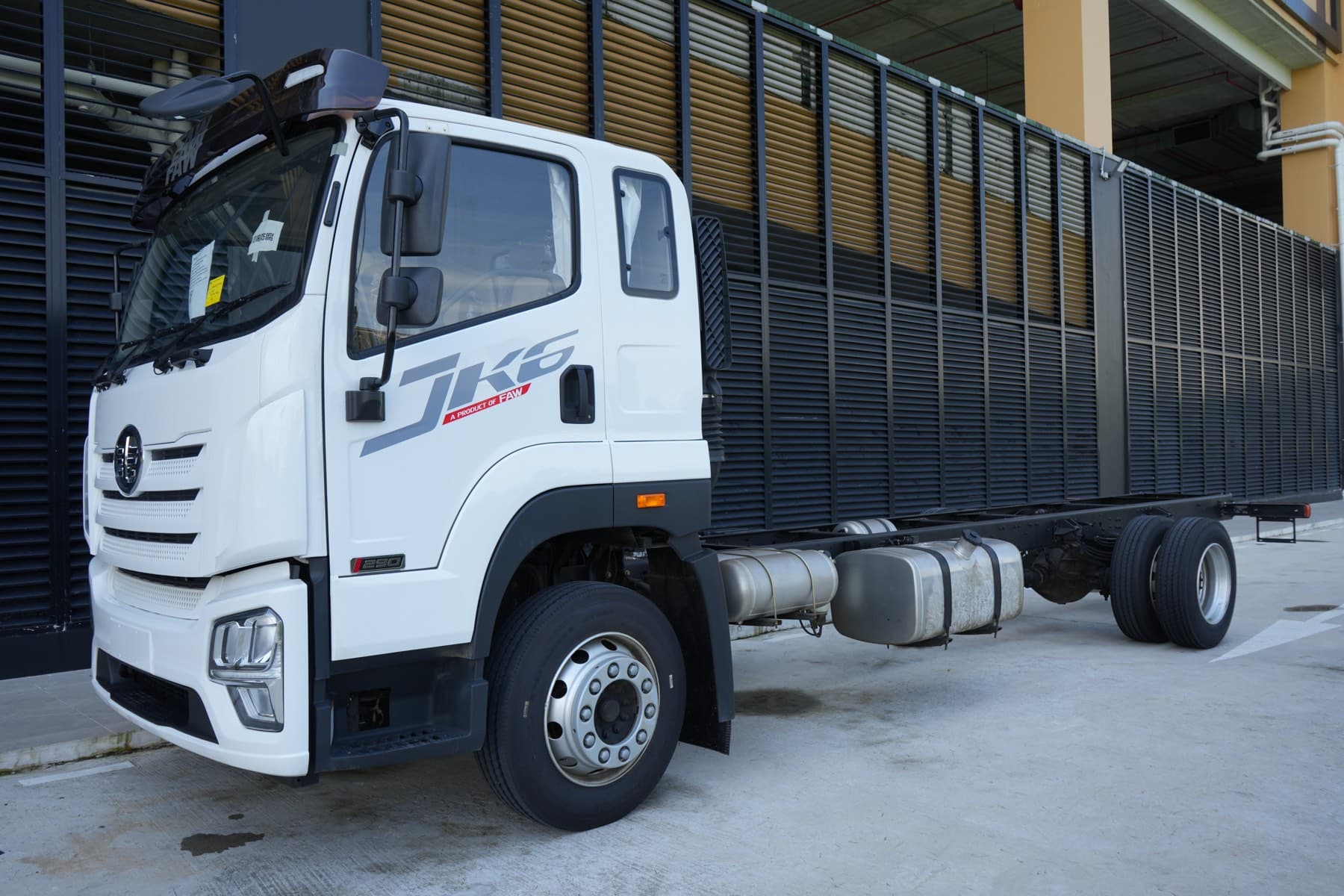

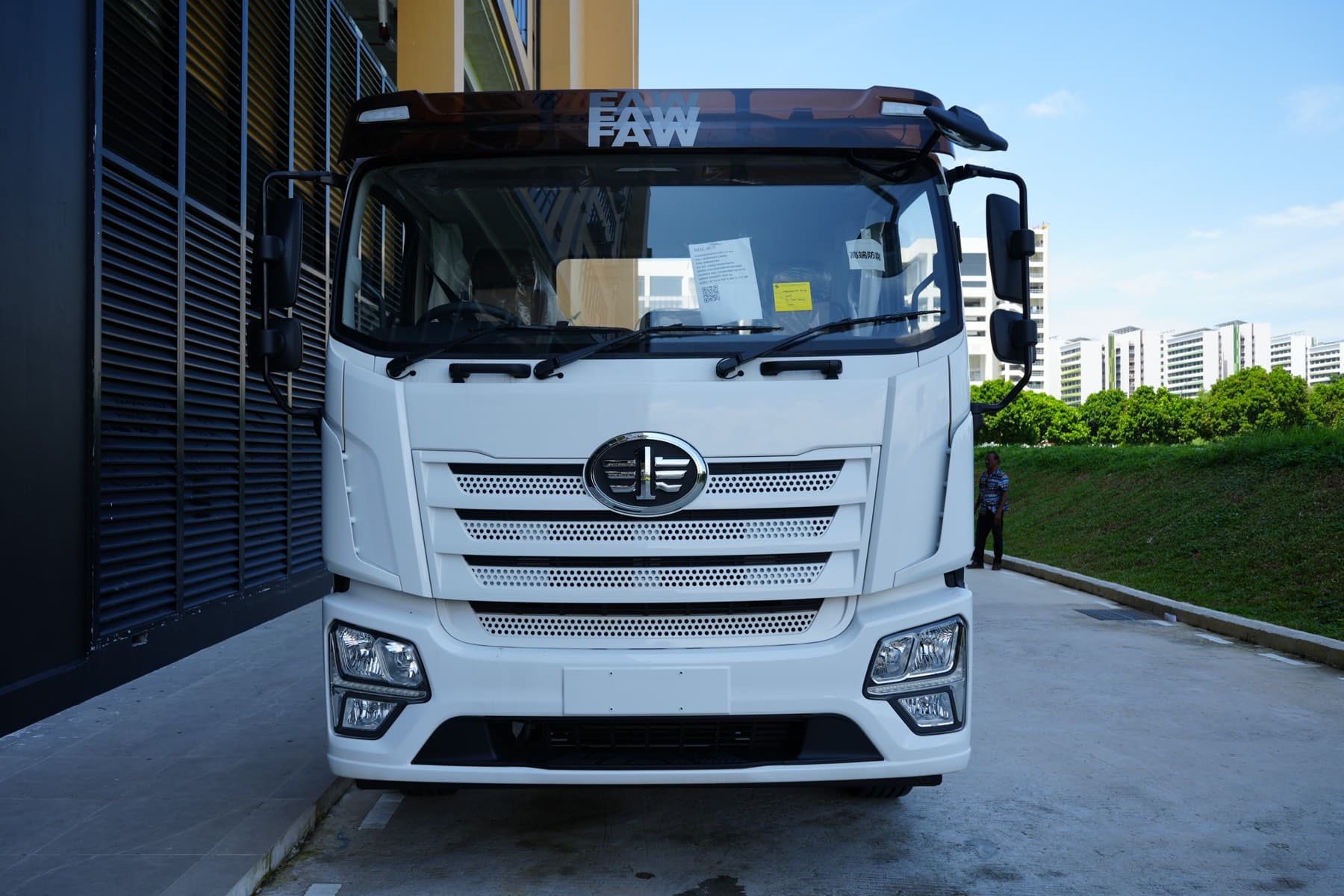

FAW JK6 4×2 medium truck. Cummins D6.7EVIE290 engine, 208 kW, AMT gearbox. 16,000 kg GVW. Versatile platform for construction and commercial haulage.一汽解放JK6 4×2中型卡车。搭载康明斯D6.7EVIE290发动机,功率208千瓦,AMT自动挡变速箱,总重16,000公斤。适用于建筑与商业运输的多功能平台。

Product video产品视频

Overview产品概述

What it's built for.专为此而生。

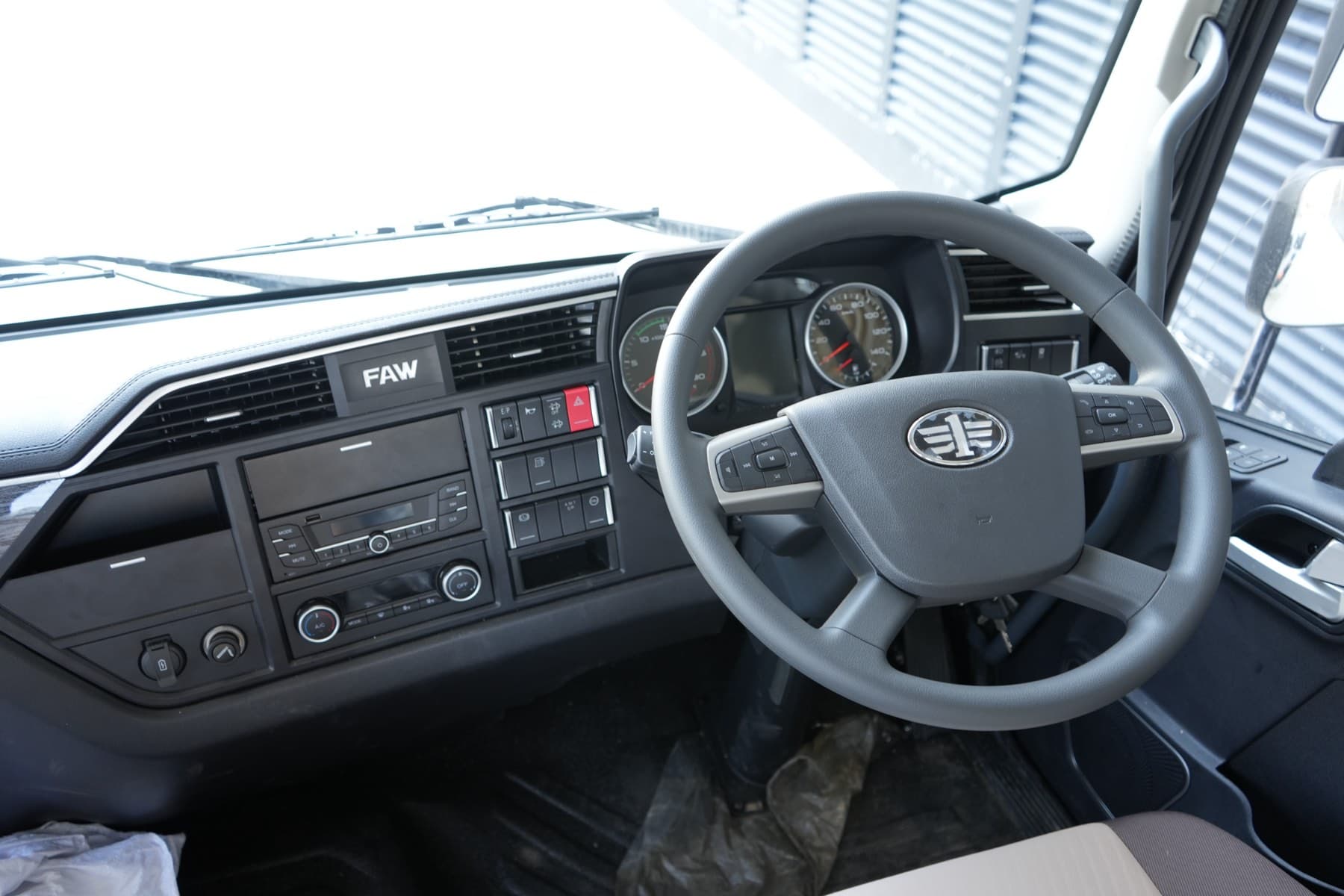

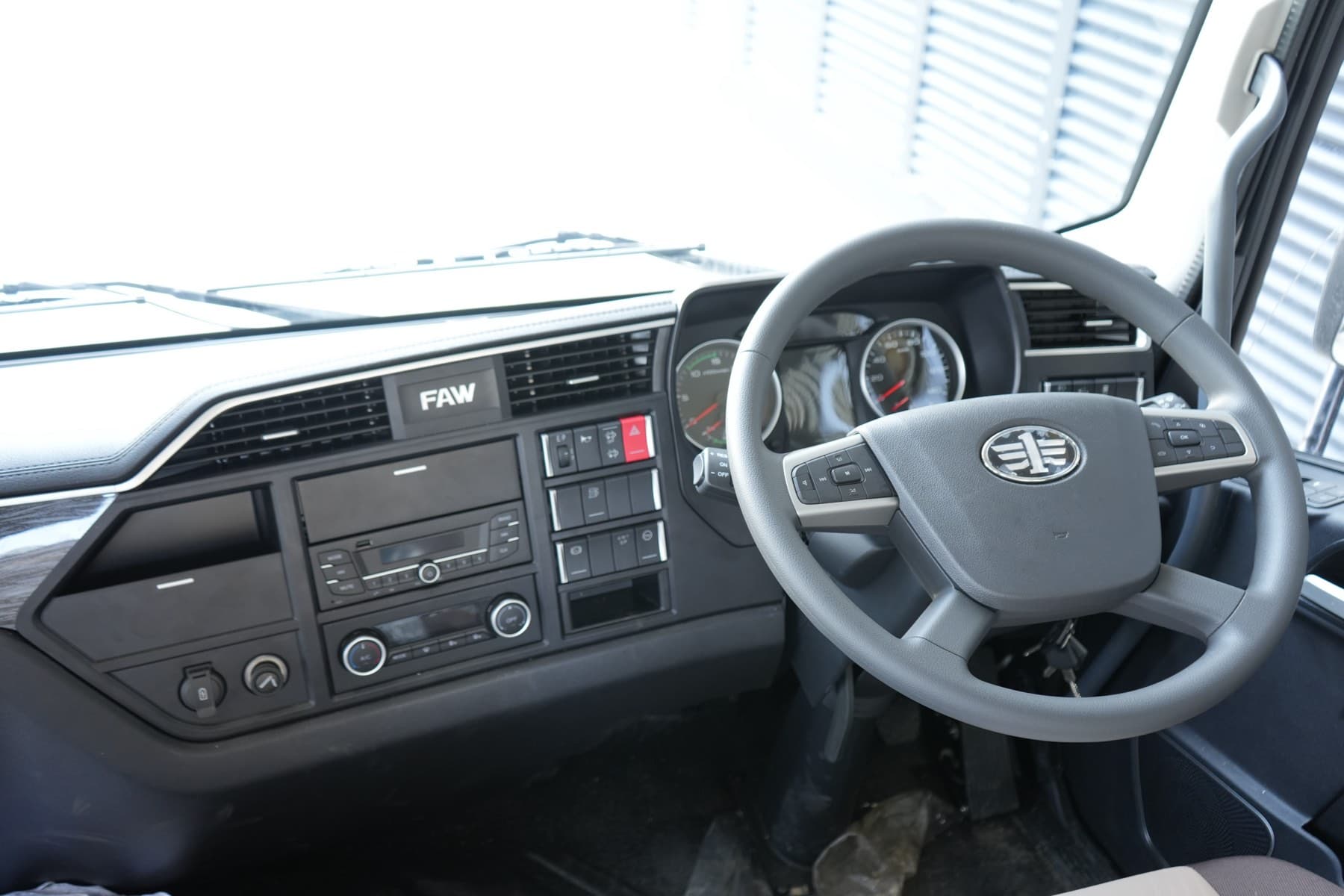

The JK6 4×2 is a capable medium-duty workhorse built for construction and commercial haulage. Powered by the Cummins D6.7EVIE290 diesel engine producing 208 kW and 1,100 N·m, mated to an AMT gearbox. The flat-top floating cab comes standard with power windows, single-cooling A/C, Grammer fabric ventilated seats, and a 10-inch display with 4-camera monitor. Optional tailgate lift (1T / 1.5T / 2T capacity) available.JK6 4×2是专为建筑与商业运输打造的中型主力车型。搭载康明斯D6.7EVIE290柴油发动机,最大功率208千瓦,最大扭矩1,100牛·米,匹配AMT自动挡变速箱。平顶浮式驾驶室标配电动车窗、单冷空调、格拉默透气布艺座椅,以及配备4路摄像头监控的10英寸显示屏。可选装尾板升降机(载重1吨/1.5吨/2吨)。

Why this model车型优势

Built for Singapore conditions.专为新加坡路况打造。

  1. Anti-corrosion treatment防锈处理

    The entire vehicle undergoes anti-corrosion treatment, making it highly suitable for Singapore’s hot, humid, and coastal environment; the paintwork is specifically protected against corrosion.整车经过防锈处理,充分适应新加坡高温、潮湿及沿海气候,漆面特别加强防腐蚀保护。

  2. UV protection防紫外线处理

    UV-resistant treatment is applied to all plastic components and wiring harnesses, ensuring that rubber parts, plastic components, and lines do not crack or fade/whiten over years of use.所有塑料件及线束均经过防紫外线处理,确保橡胶件、塑料件及线路长期使用不会开裂或褪色泛白。

  3. Thermal insulation隔热处理

    To combat Singapore's heat, special thermal insulation material has been added to the cab. This improves air conditioning efficiency—allowing for lower settings and fuel savings—while also providing soundproofing and heat insulation for a more comfortable driving experience.针对新加坡炎热气候,驾驶室加装特殊隔热材料,提升空调制冷效率、降低设定负荷并节省燃油,同时具备隔音隔热效果,驾驶更为舒适。

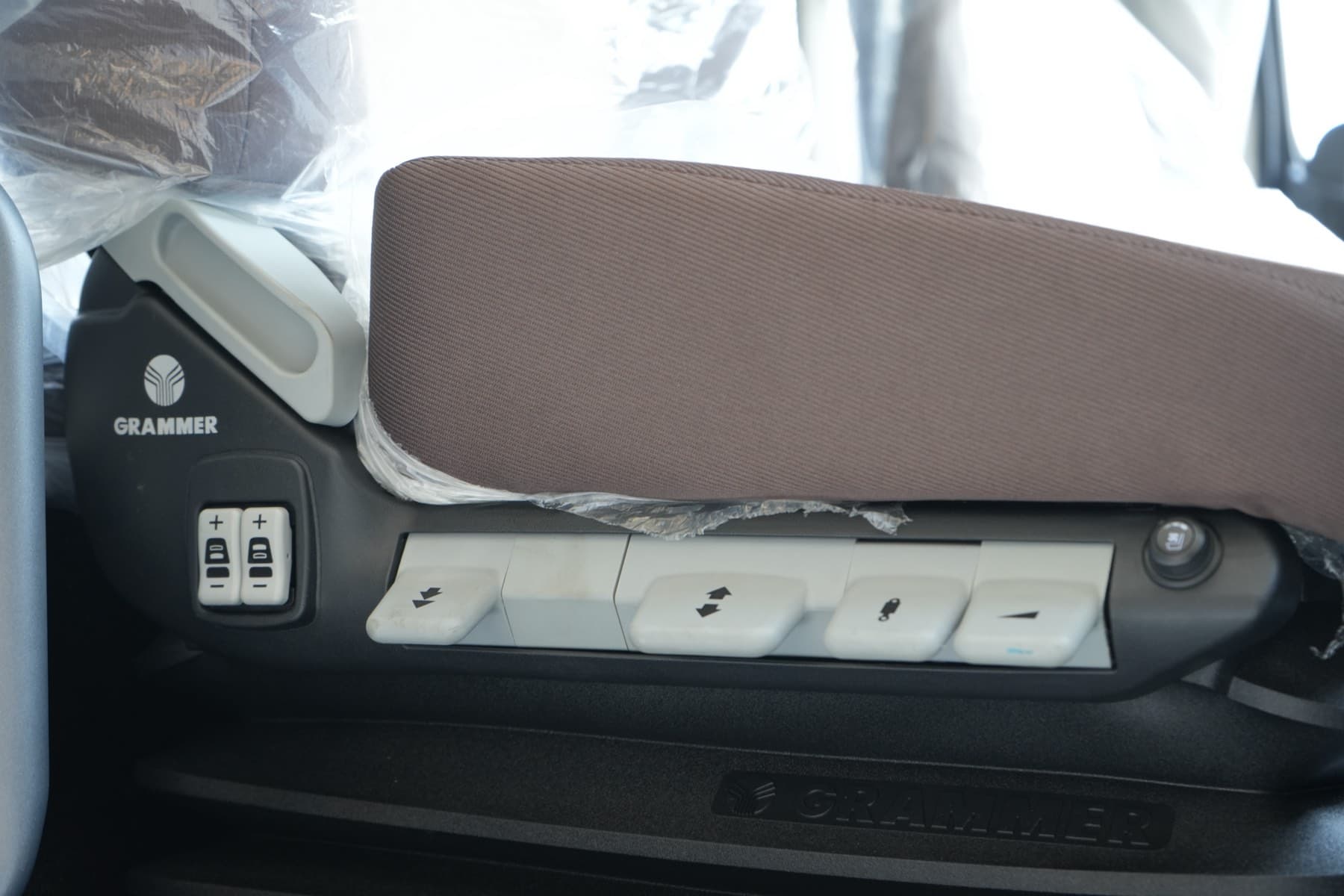

  4. Grammer air-suspension ventilated seats格拉默气悬架透气座椅

    Equipped with premium-brand air-suspension seats featuring armrests and ventilation. These provide a smooth, comfortable ride that minimizes fatigue during long drives, while the ventilation system ensures driver comfort.配备格拉默品牌气悬架座椅,带扶手及透气功能,长途驾驶更平稳舒适、减少疲劳,透气系统确保驾驶员舒适度。

  5. Ultra-low loading platform超低货台

    The loading platform height is as low as 1 meter, facilitating easier loading and unloading and increasing operational efficiency.货台高度低至1米,装卸货更加便捷,有效提升作业效率。

  6. OEM-standard tires原厂标准轮胎

    Uses high-quality "Double Coin" brand 275-series tires, resulting in lower operating costs.采用优质"双钱"品牌275系列轮胎,有效降低运营成本。

  7. Premium components优质部件

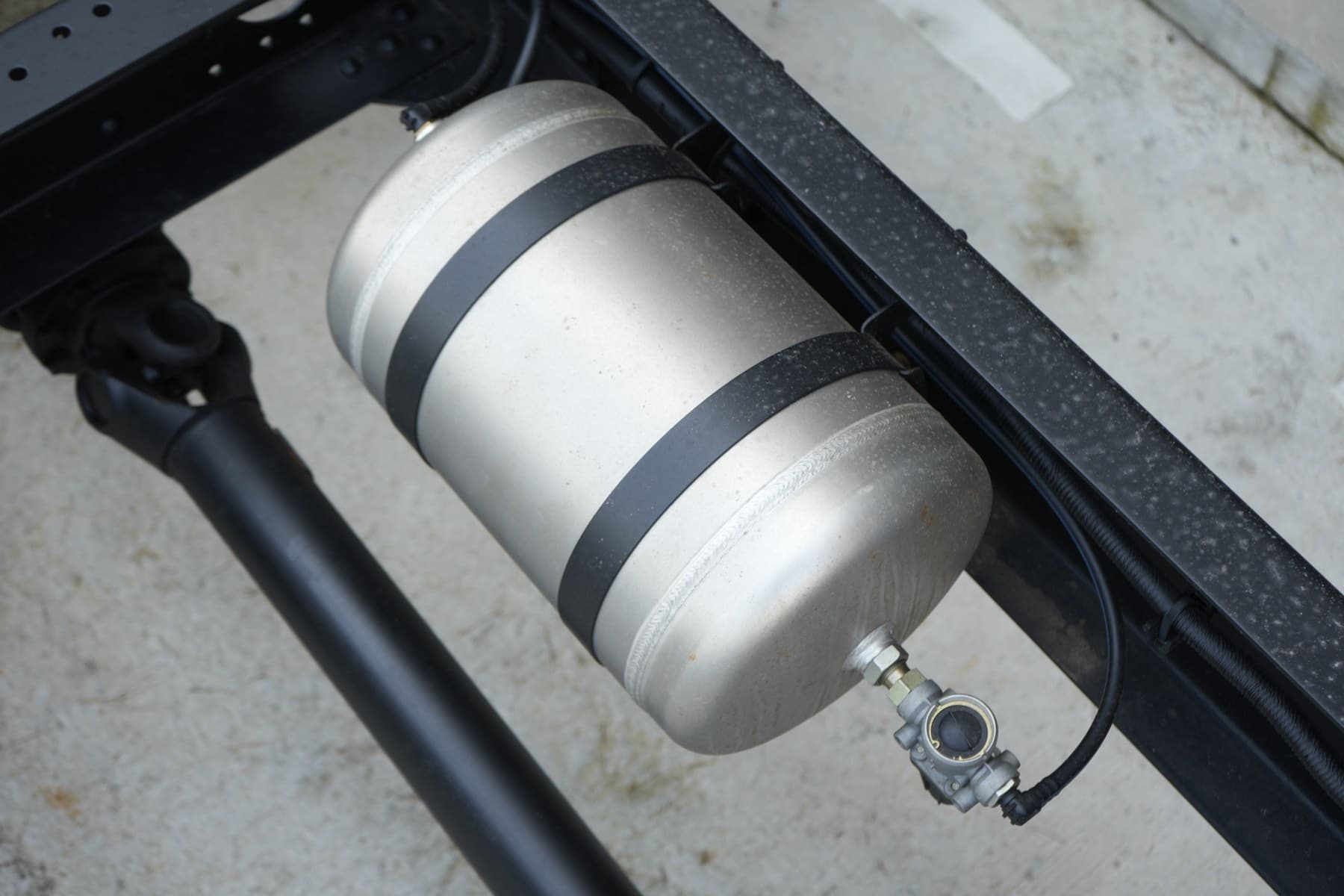

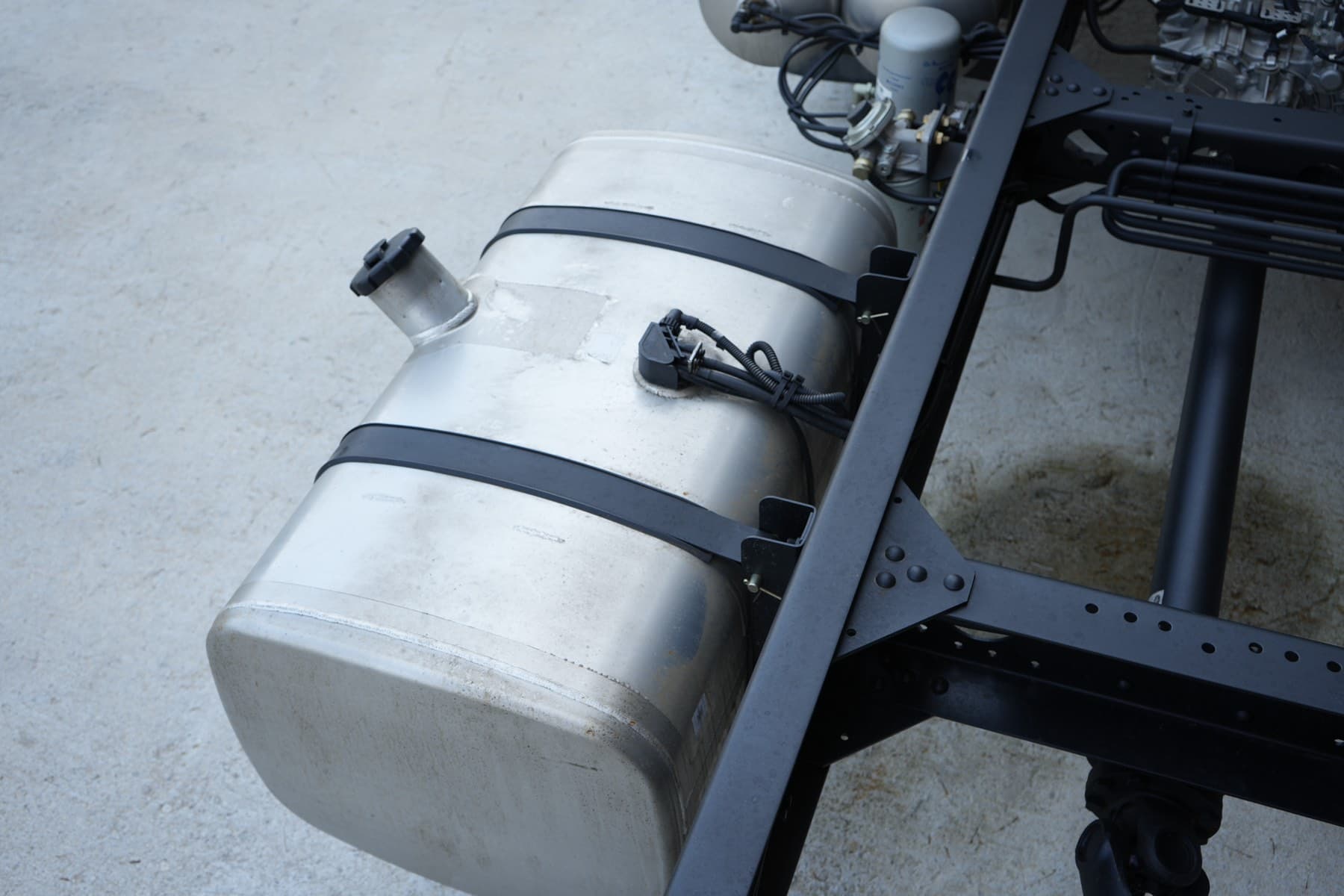

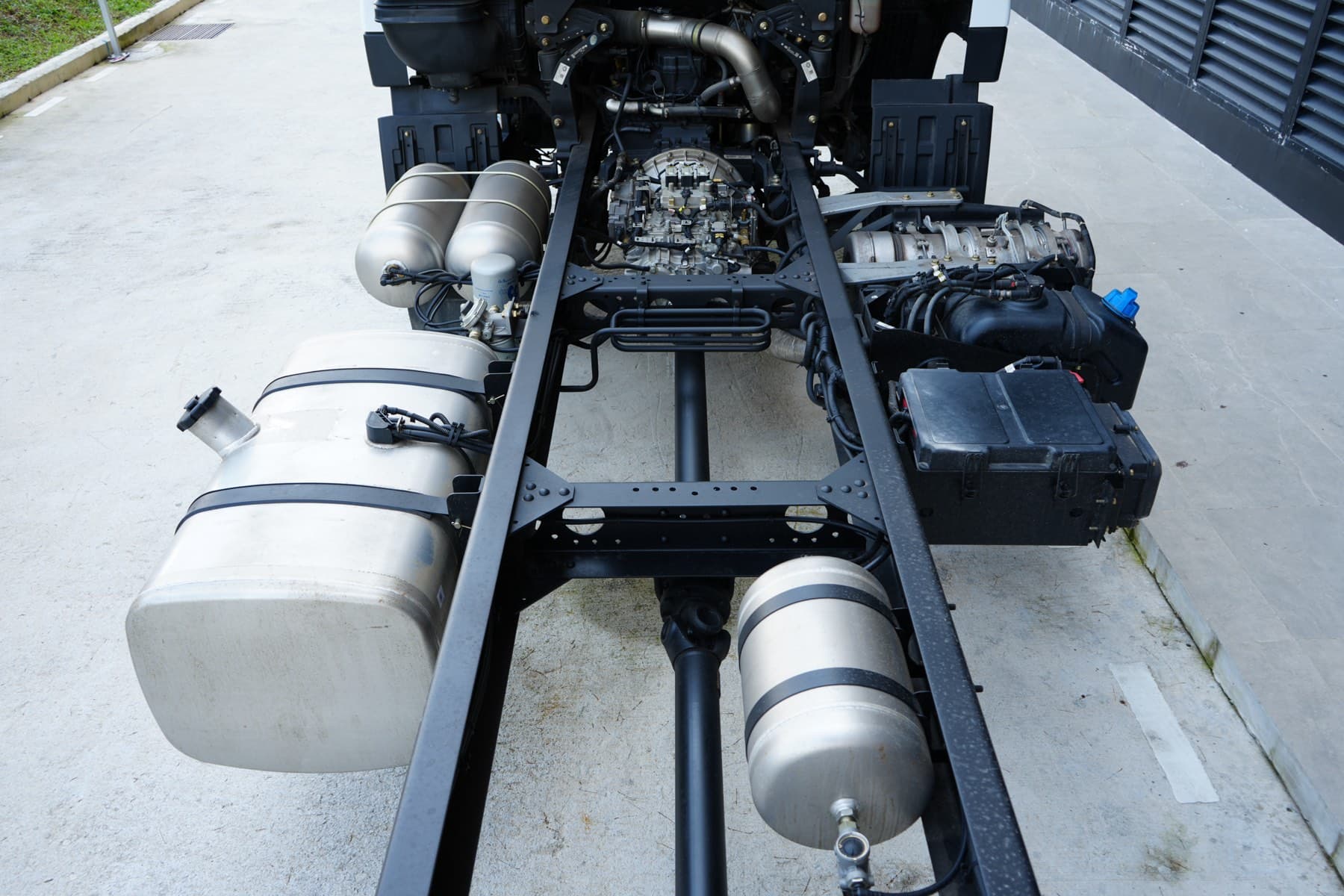

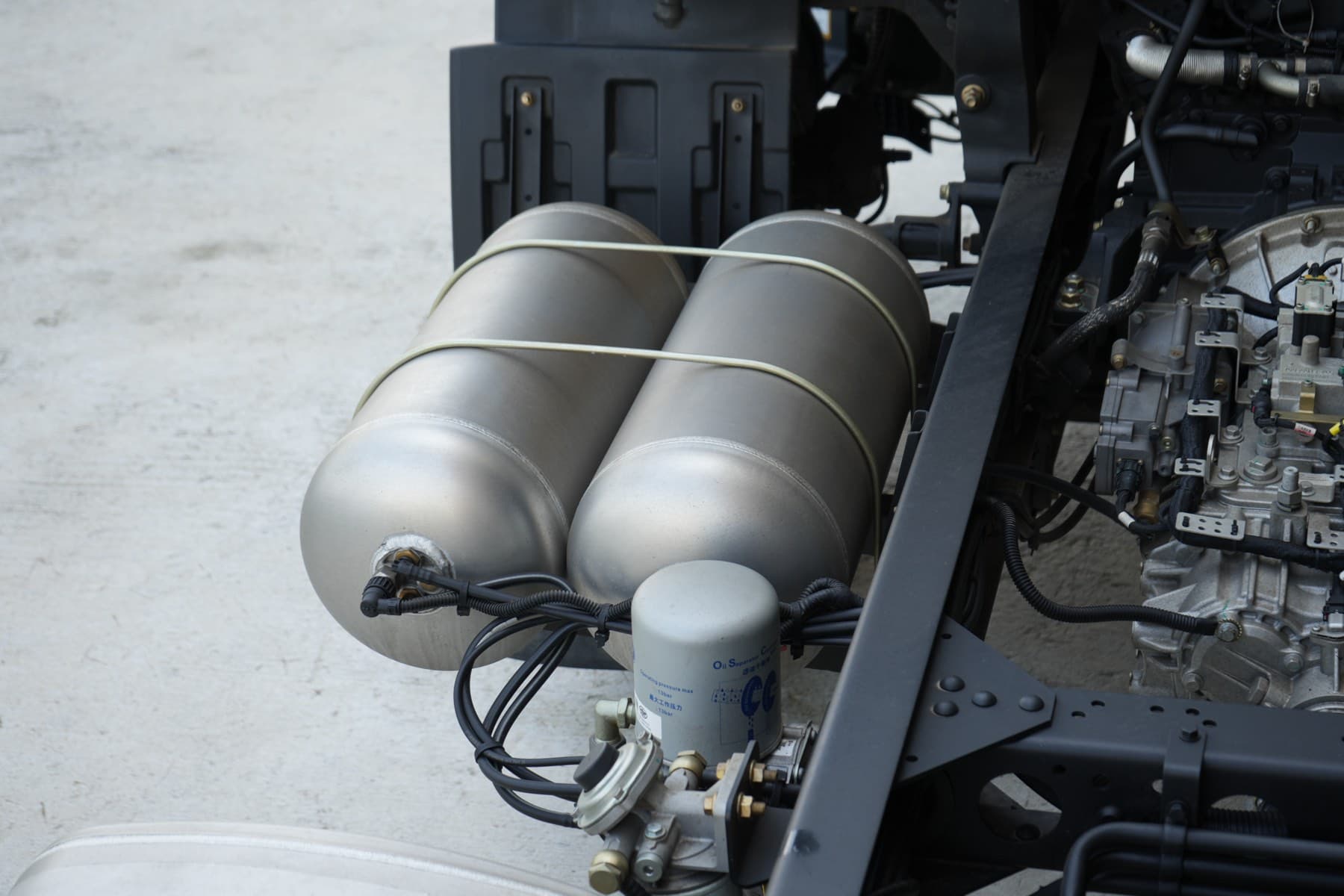

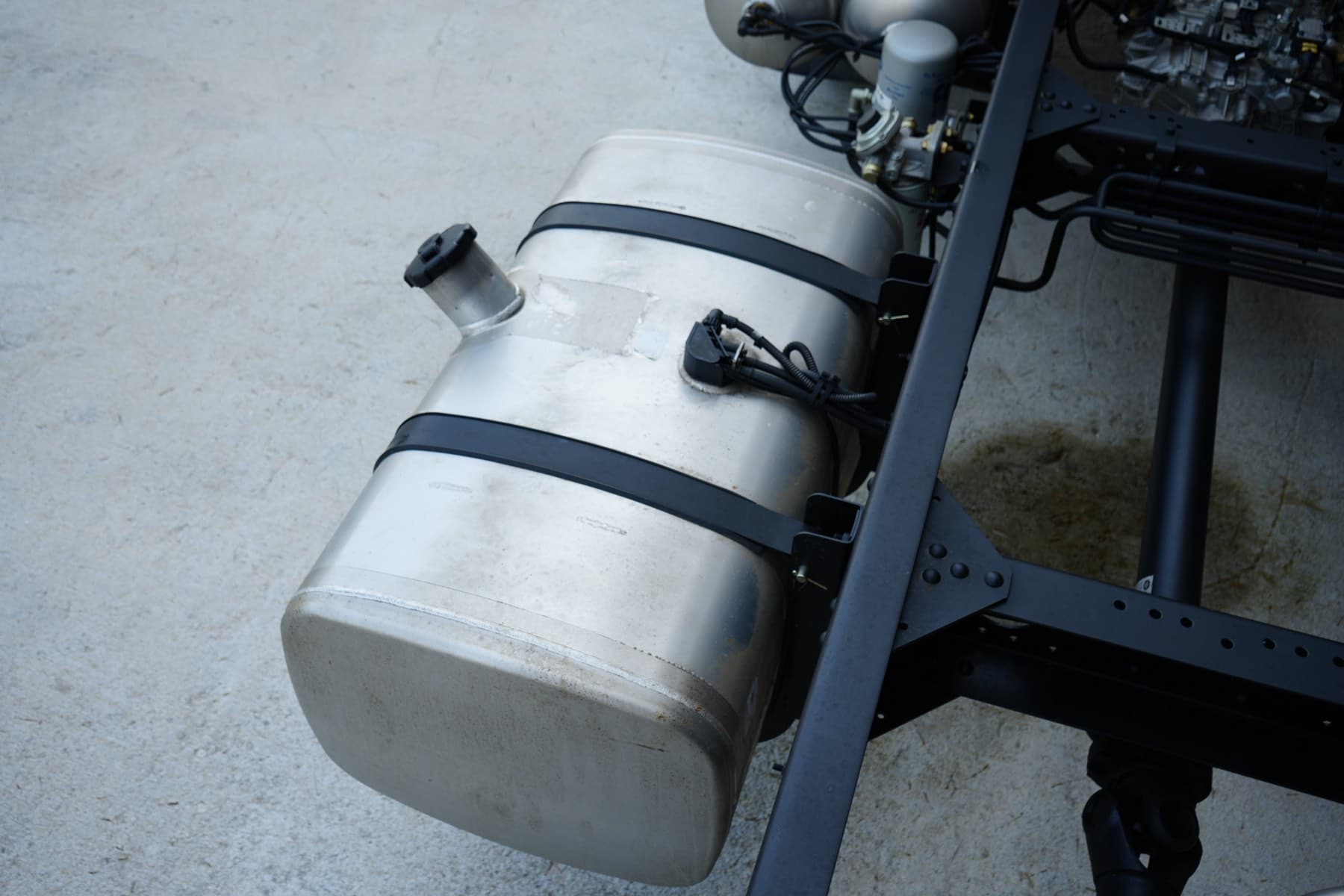

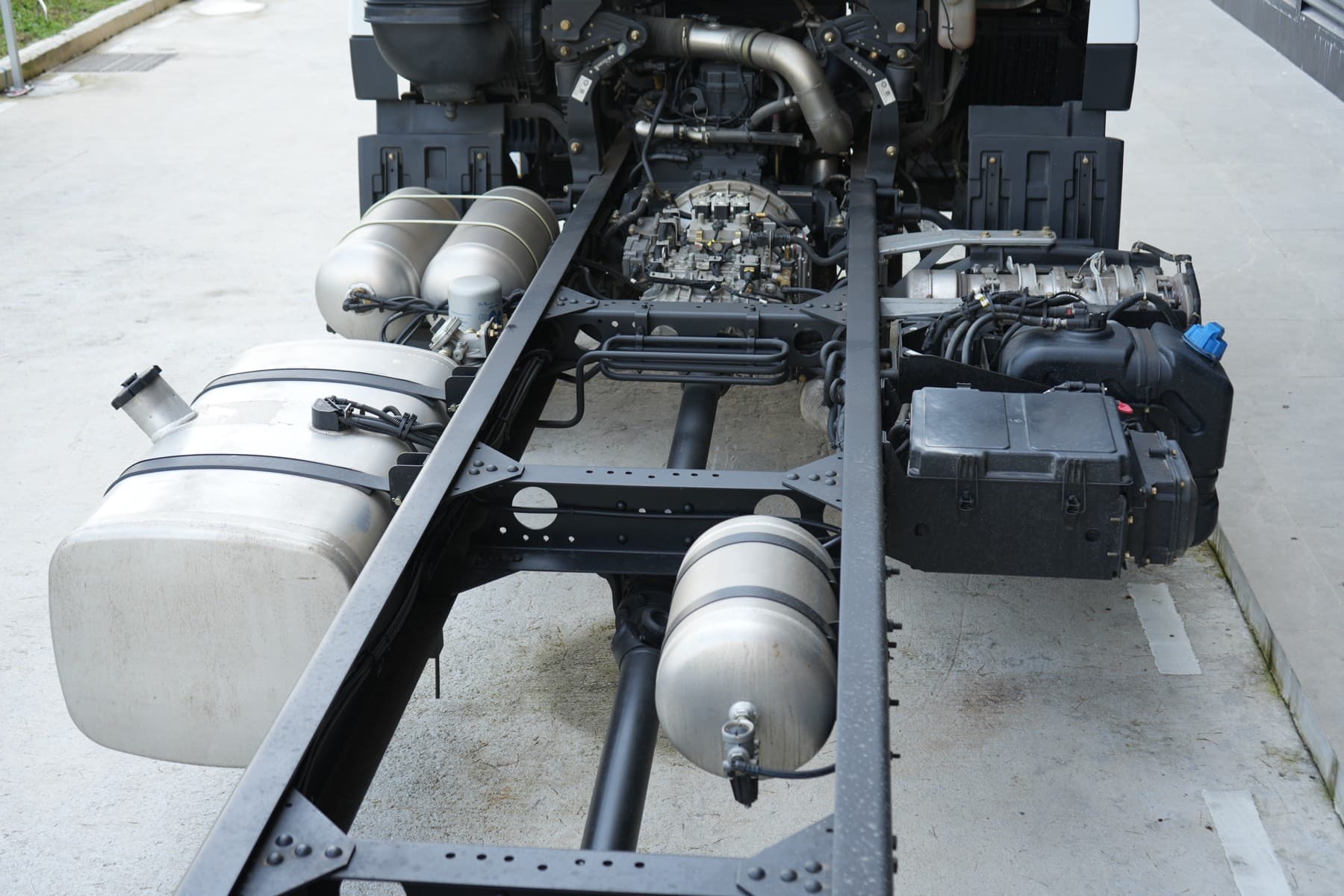

    The vehicle features aluminum air tanks and fuel tanks, as well as upgraded wiring harnesses, reflecting robust build quality.配备铝制储气筒及油箱,并升级线束配置,整车用料扎实可靠。

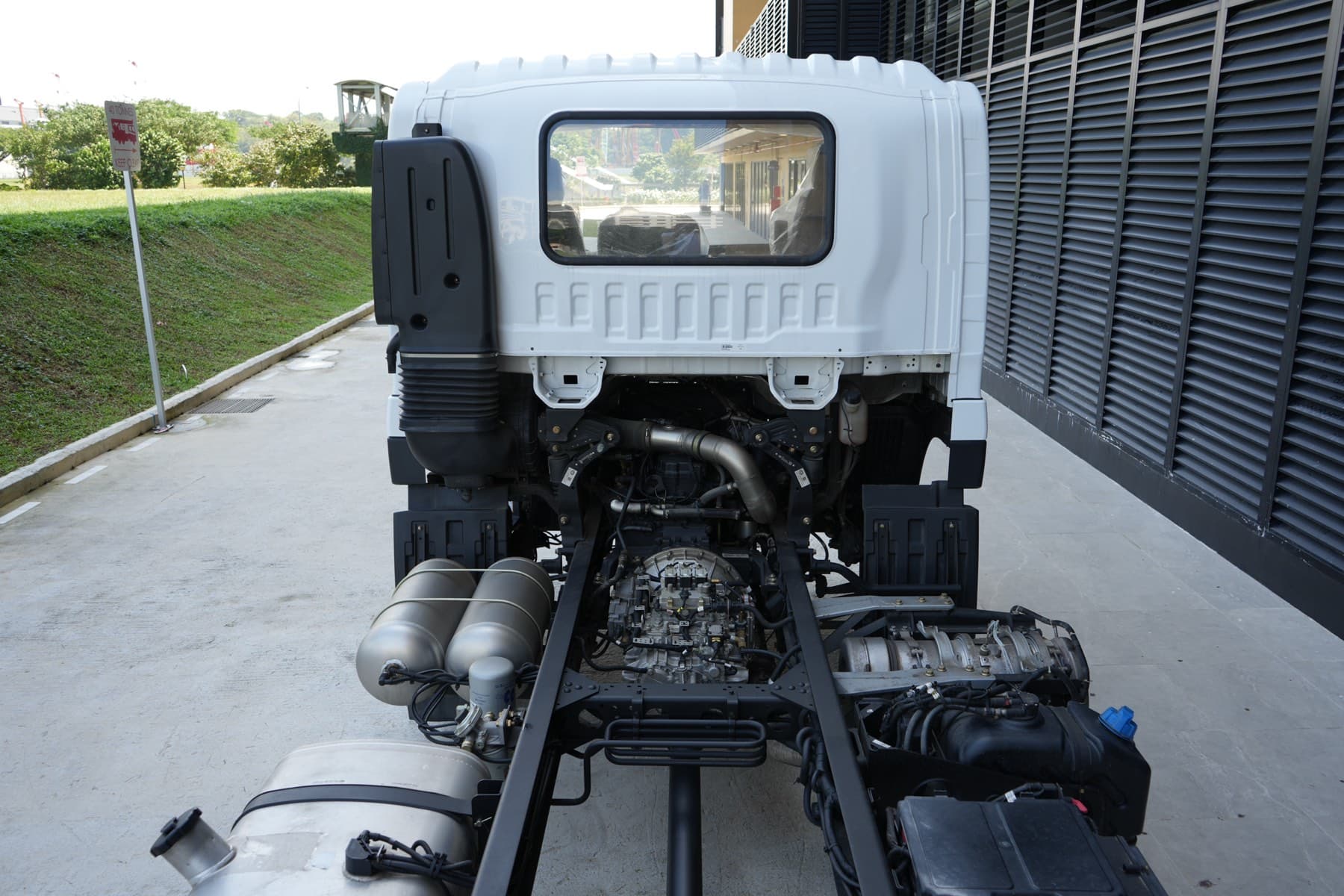

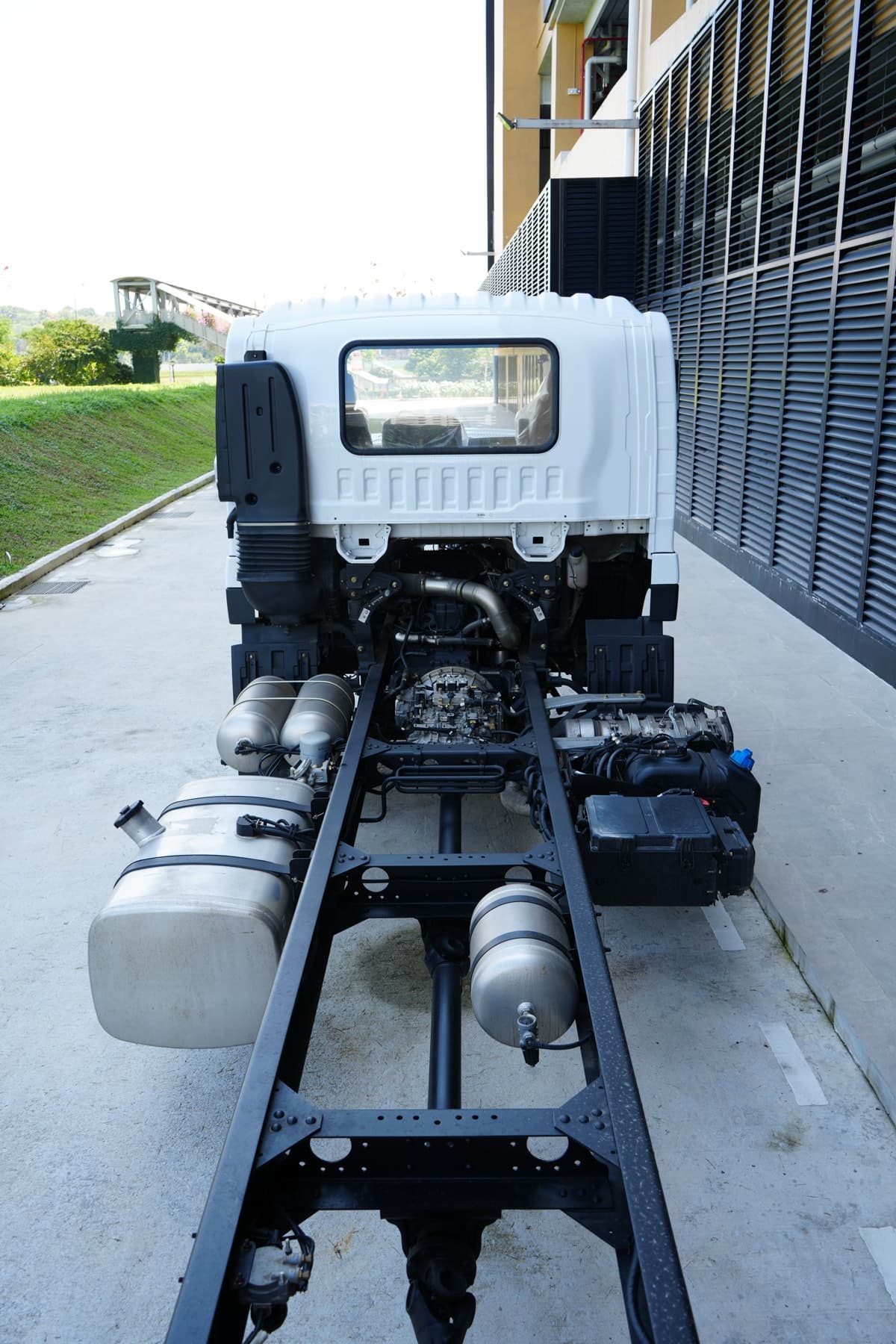

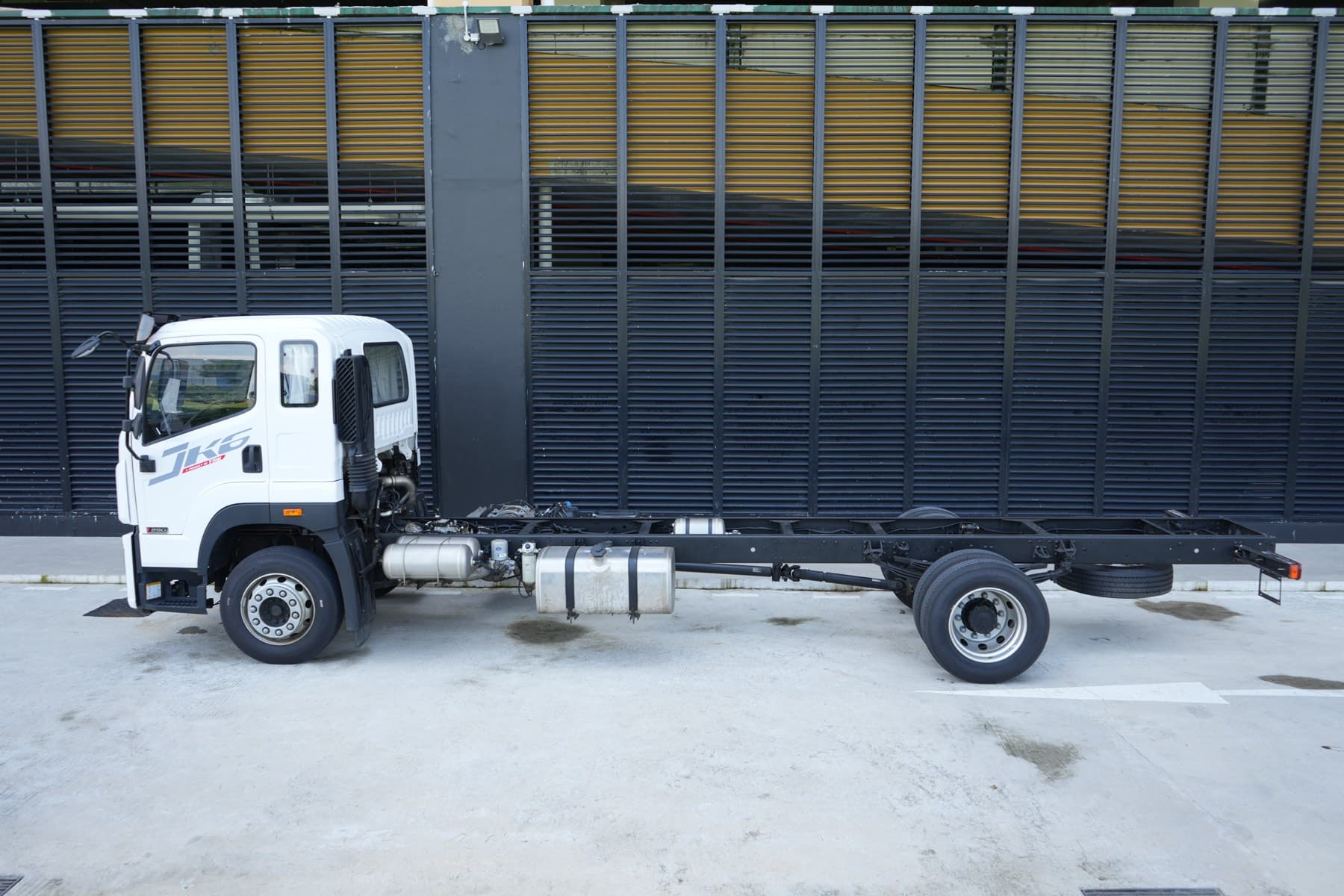

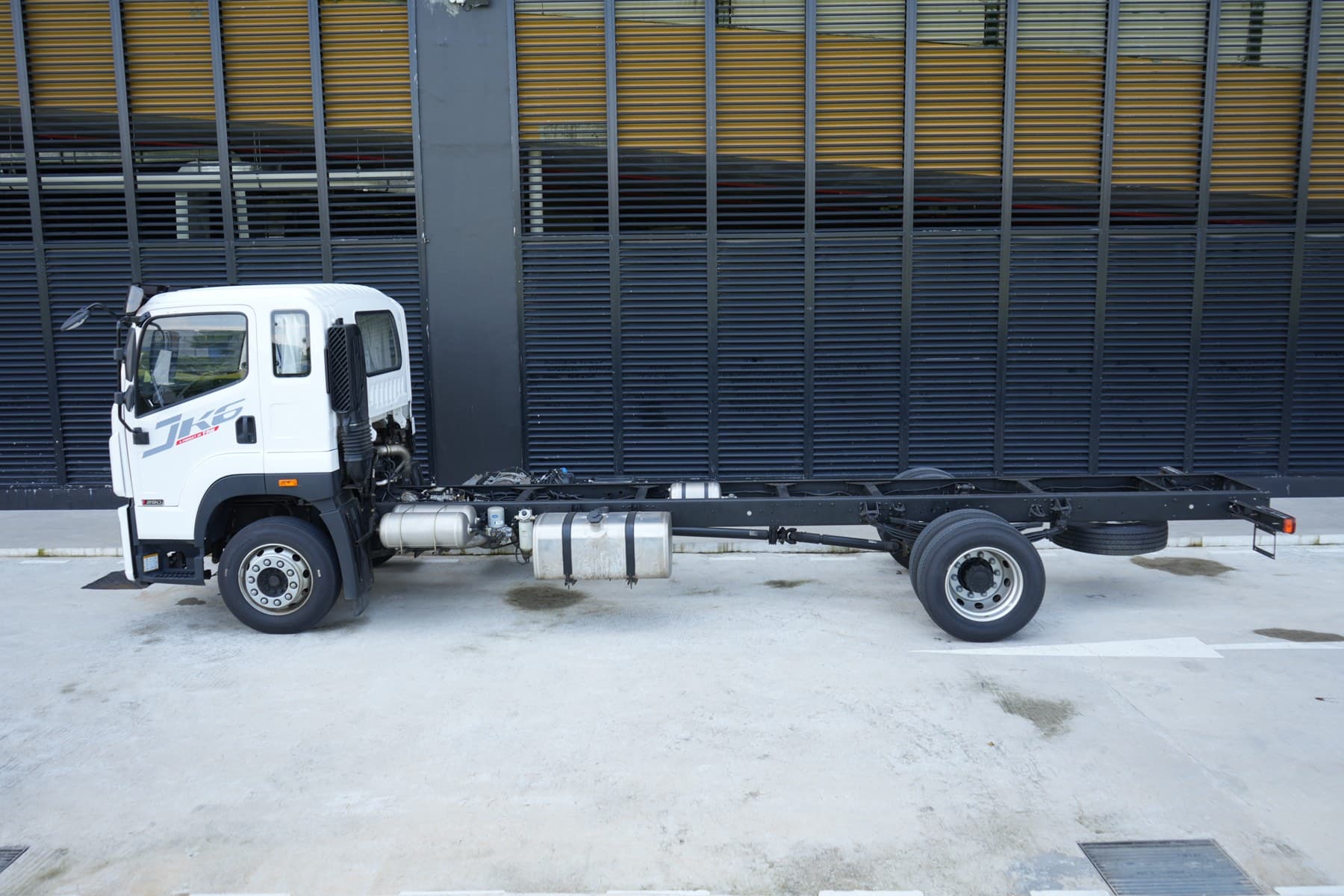

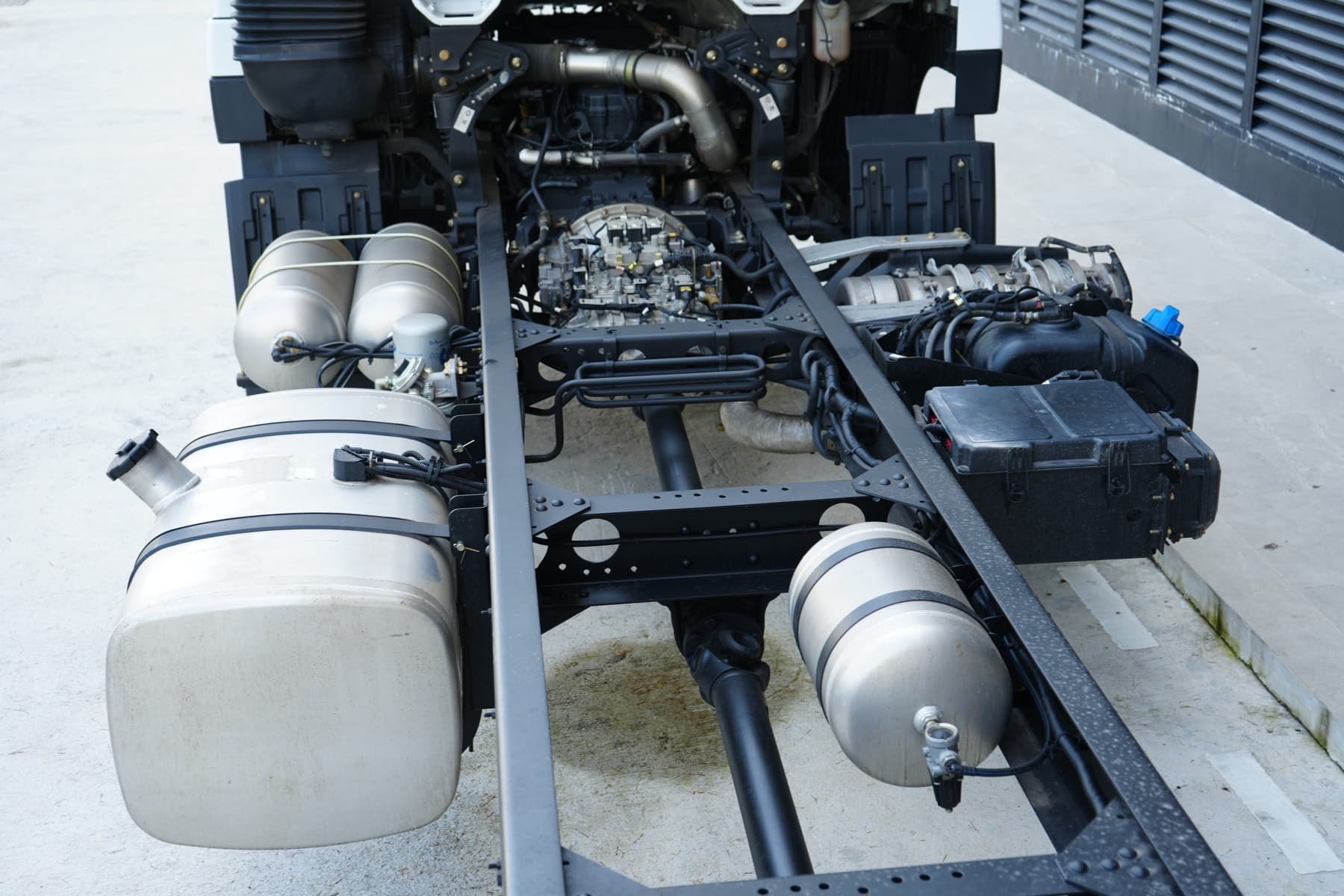

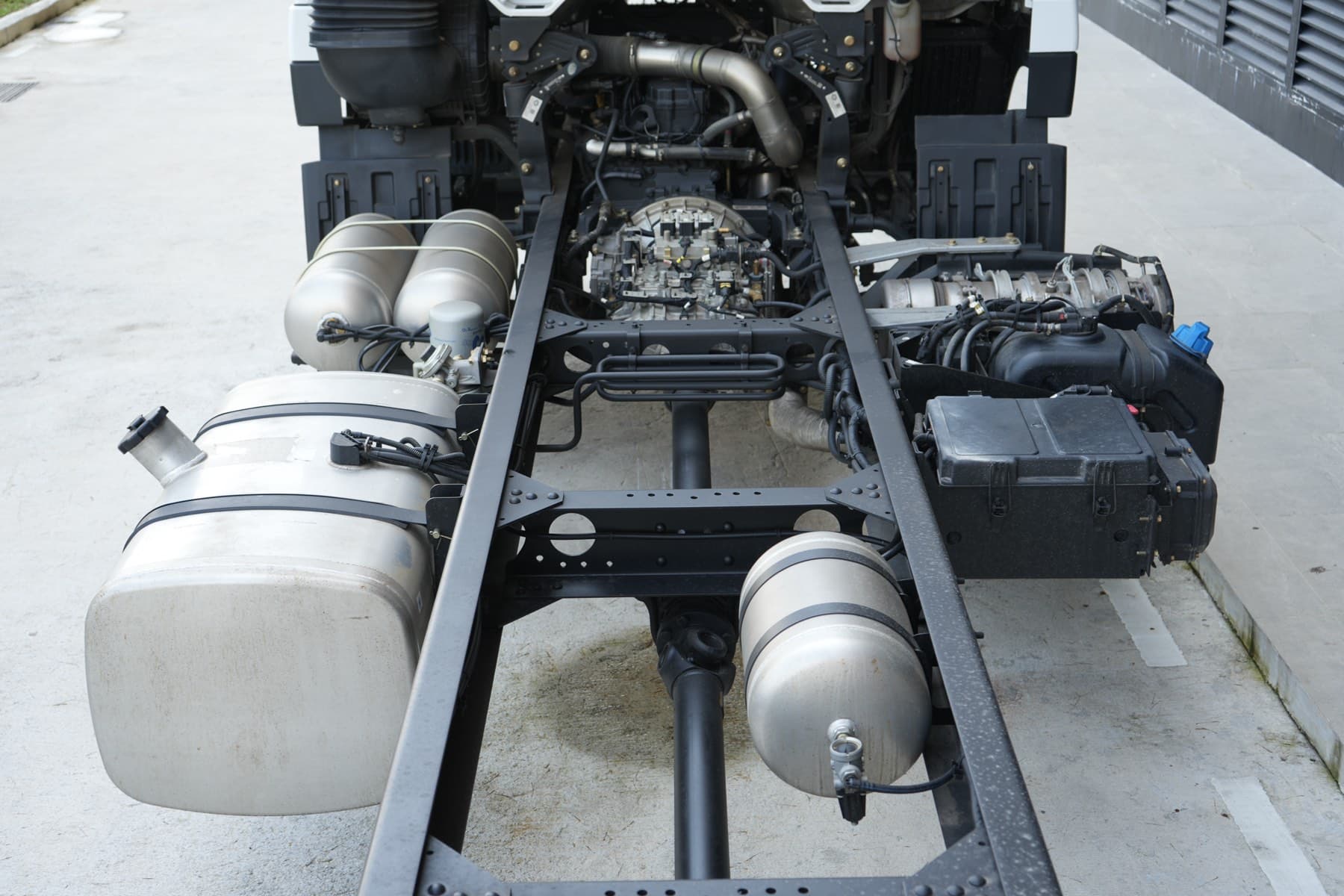

  8. Roll-formed chassis frame辊压成型车架

    The main frame is manufactured using a roll-forming process, making it more durable and stronger than the stamped frames found on most competing models. (Stamped frames have drawbacks: the single, violent stamping process can create internal stress and spring-back; a single mold is limited to one specific cross-section; and dimensional consistency is inferior to roll-forming.)主车架采用辊压成型工艺制造,比大多数竞品所用的冲压车架更耐用、更坚固。(冲压车架的不足:单次剧烈冲压易产生内应力及回弹;单一模具仅能生产特定截面;尺寸一致性也不及辊压成型工艺。)

  9. 360-degree (4-camera) view system360度(4路摄像头)影像系统

    Provides real-time monitoring of the front, rear, left, and right sides, making driving safer and more convenient.实时监控车辆前后左右四个方向,行车更安全、更便利。

  10. Extended lubricant service life长效润滑油

    Uses long-life lubricants, extending service intervals to between 50,000 and 200,000 km; spend less time in the shop and more time working and earning.采用长效润滑油,保养周期延长至5万至20万公里,减少进厂保养时间,创造更多营运收益。

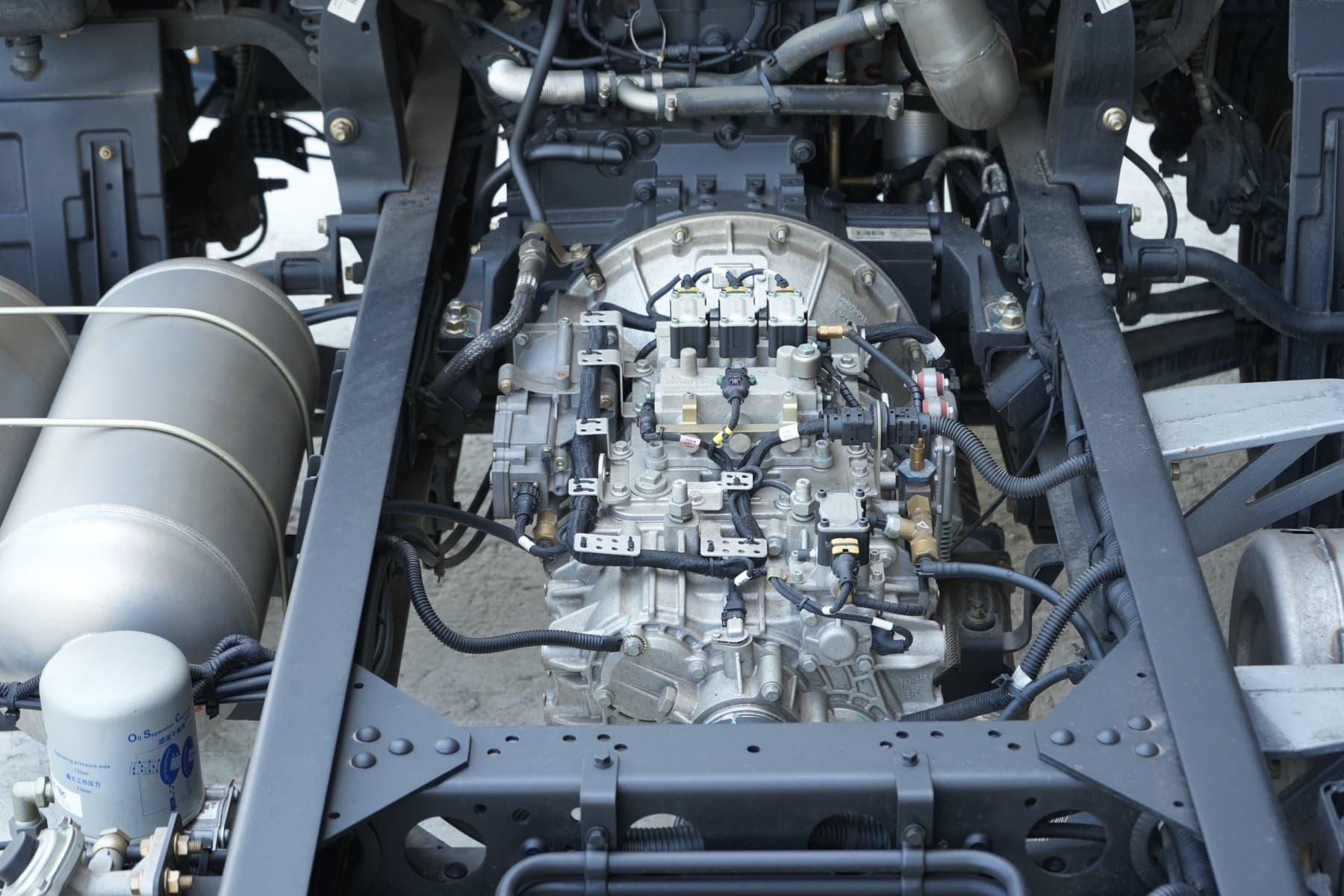

  11. PTO-equipped transmission变速箱配备取力器(PTO)

    Transmission equipped with a PTO (Power Take-Off) unit, allowing for the installation of a truck-mounted crane.变速箱配备取力器(PTO),可加装随车吊。

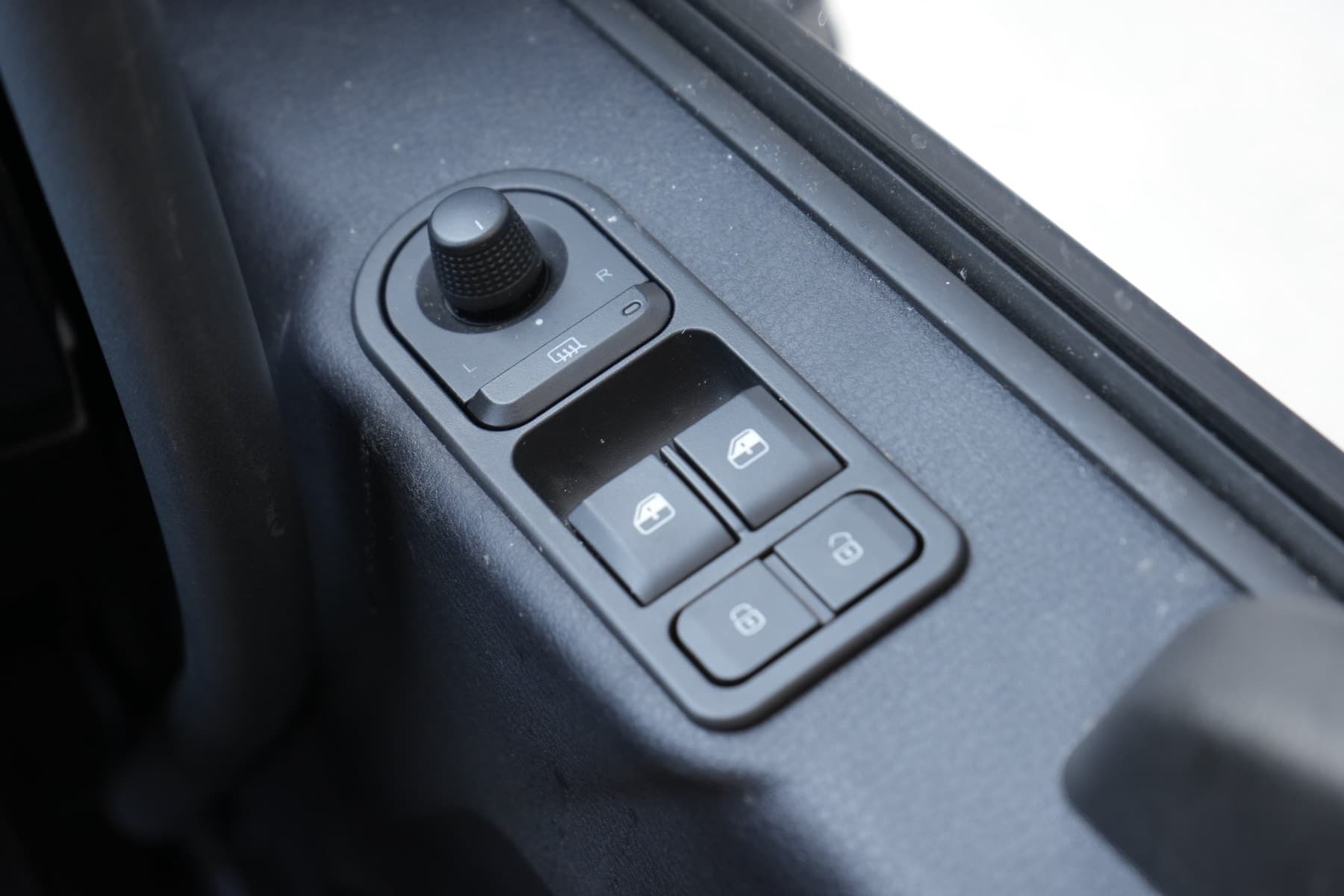

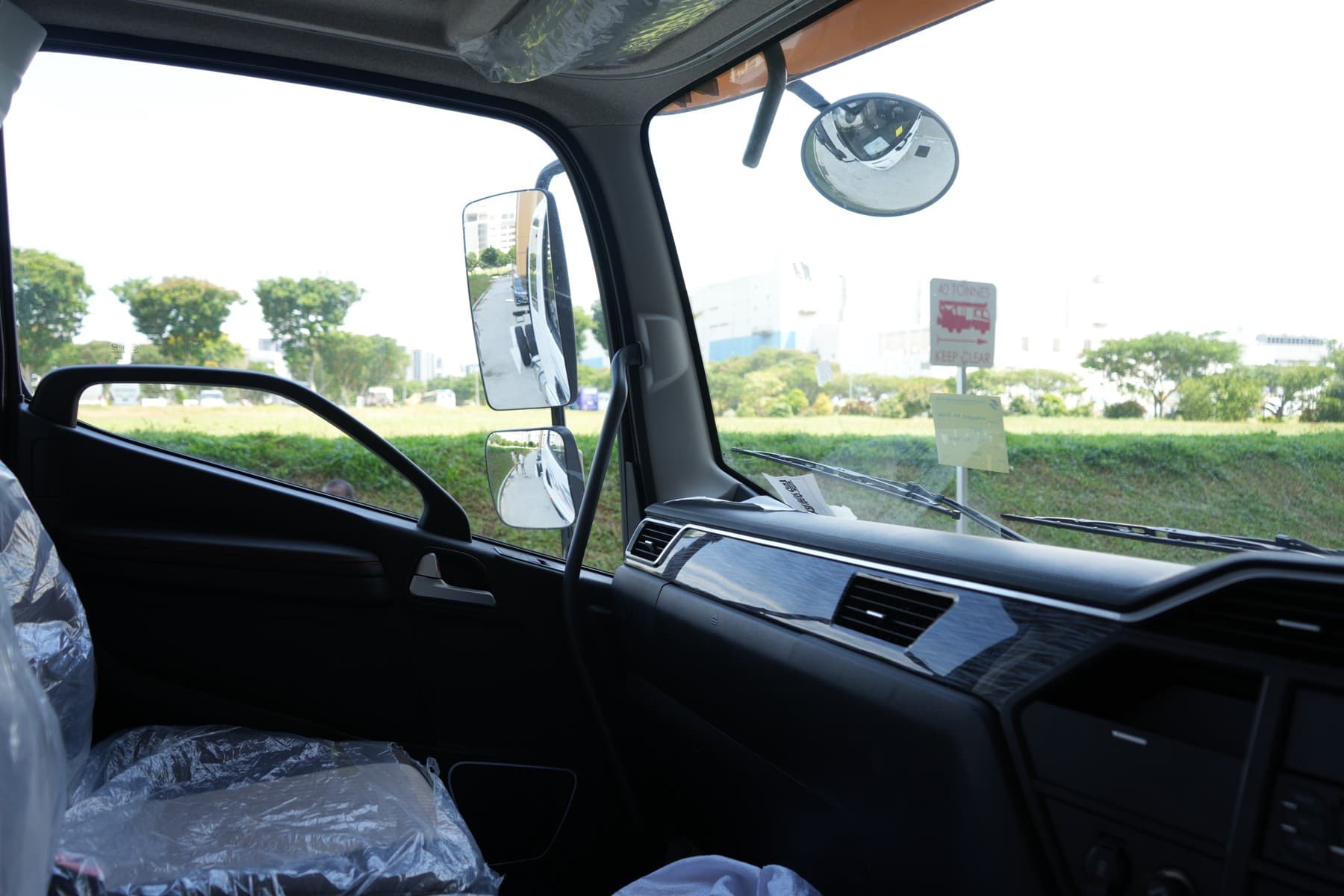

  12. Automatic mirror adjustment自动后视镜调节

    Automatic mirror adjustment makes handling easier for the driver.后视镜自动调节,驾驶操作更轻松。

  13. Tail lift included尾板升降机随车配备

    Tail lift included with the vehicle purchase.购车即配备尾板升降机。

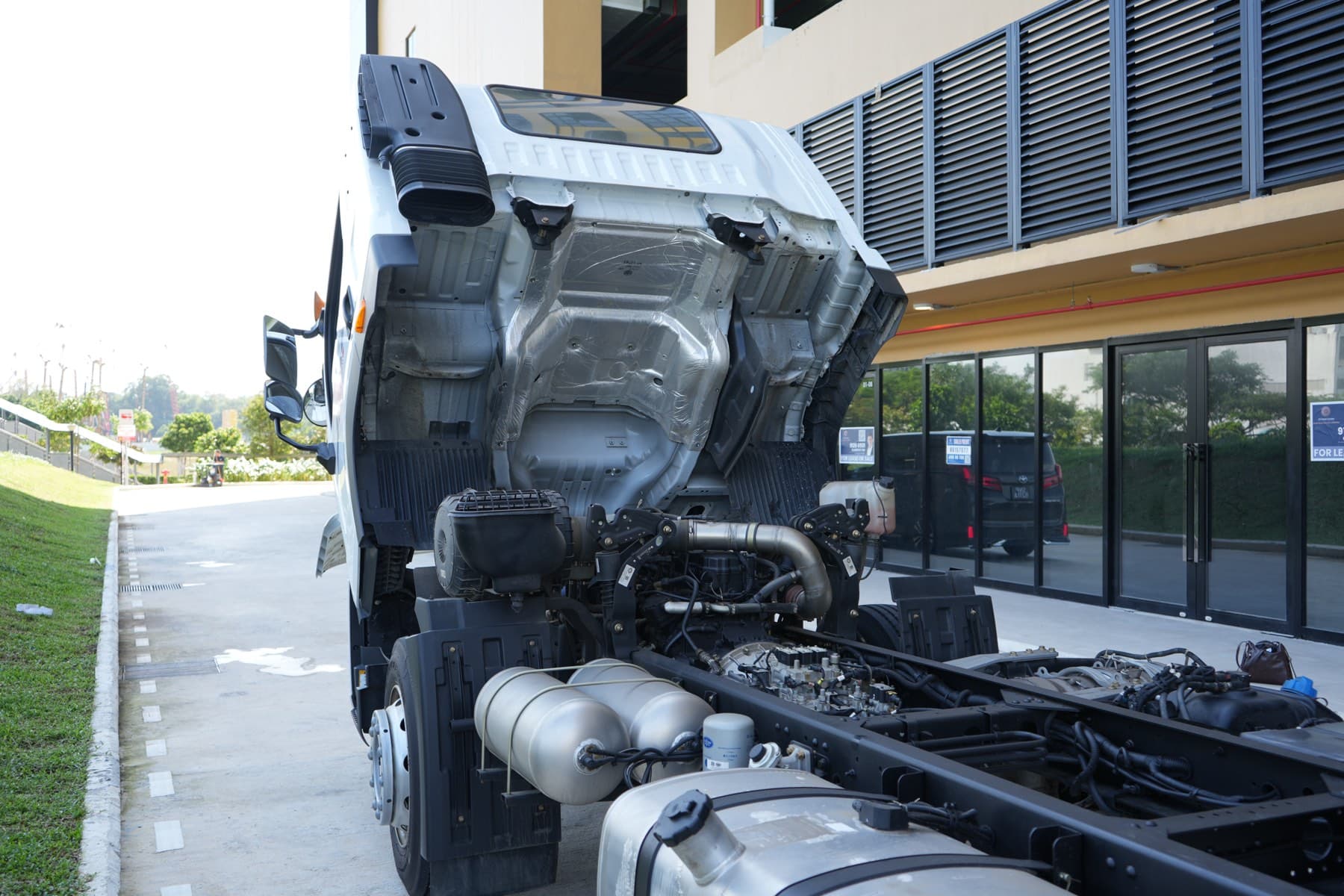

  14. Electric cab-tilt function电动驾驶室翻转功能

    Electric cab-tilt function makes maintenance and parts replacement effortless and convenient.电动驾驶室翻转功能,维修保养及配件更换更省力、便捷。

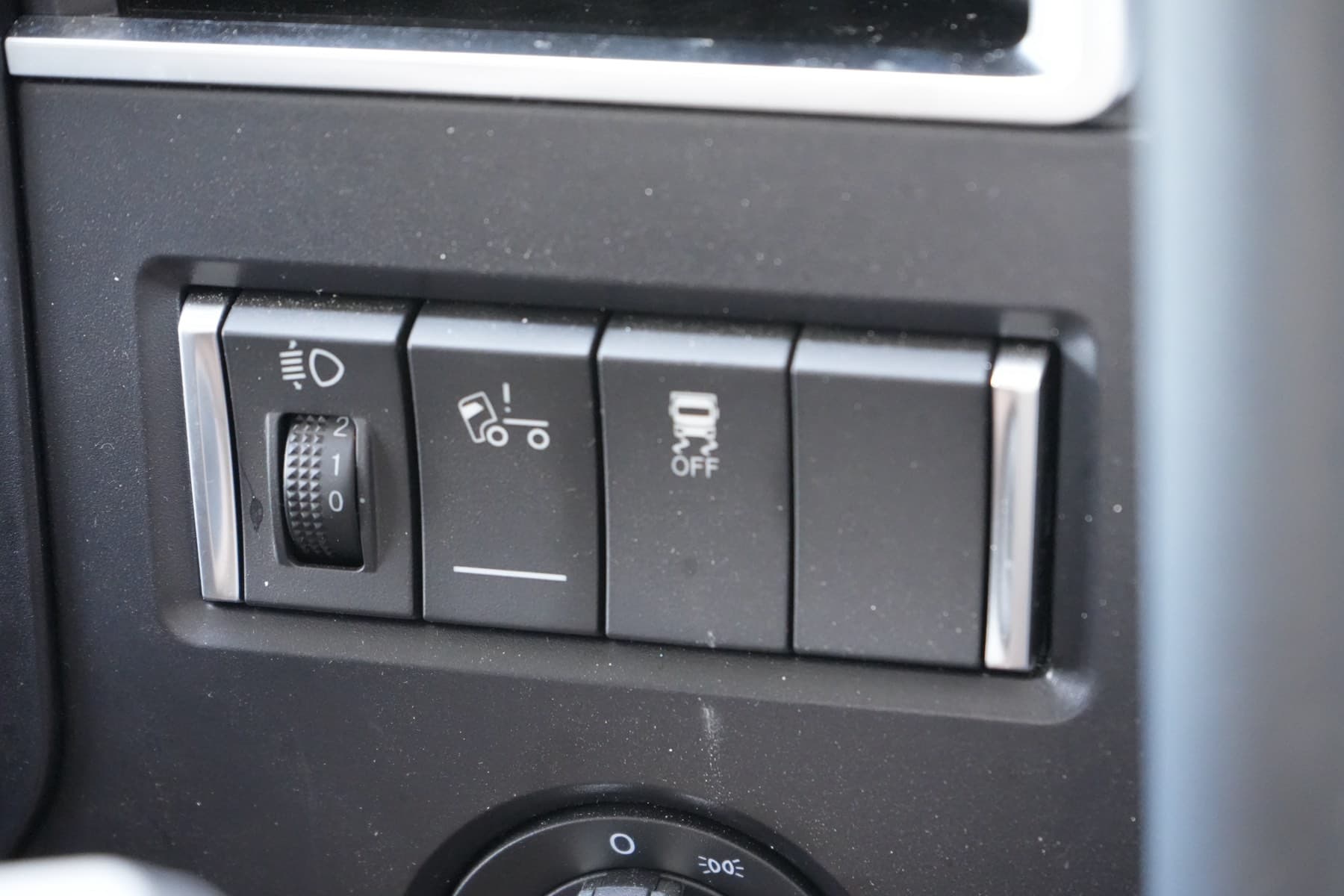

  15. Cruise control & cornering anti-roll system巡航控制与弯道防侧倾系统

    Cruise control plus a cornering anti-roll system give the driver greater confidence.配备巡航控制与弯道防侧倾系统,驾驶更有信心。

  16. World-class components世界级零部件

    Features world-class components: Cummins engine and Fast transmission.搭载世界级零部件:康明斯发动机与法士特变速箱。

  17. Backed by a major state-owned enterprise大型国企背景保障

    Backed by a major state-owned enterprise; manufactured to leading international standards, rivaling European and American brands.由大型国有企业提供支持,生产标准比肩国际先进水平,可与欧美品牌媲美。

  18. Front and rear disc brakes前后盘式制动器

    Front and rear disc brakes; this design is tailored for operating conditions like those in Singapore—clean roads free of heavy mud or grit. Braking is smooth and comfortable—similar to a passenger car—avoiding the abrupt, jerky feel of drum brakes, while offering excellent heat dissipation and quick maintenance.前后均采用盘式制动器,专为新加坡这类路面清洁、少泥沙的行驶环境而设计。制动平顺舒适,接近乘用车体验,避免鼓式制动器的顿挫感,同时散热性能优异、保养维修更快捷。

Full specifications完整规格

Every figure, sourced.每项数据,有据可查。

Manufacturer spec · validated for Singapore LTA type approval制造商规格 · 已通过新加坡陆交局型式认可

Engine & Driveline发动机与传动系统

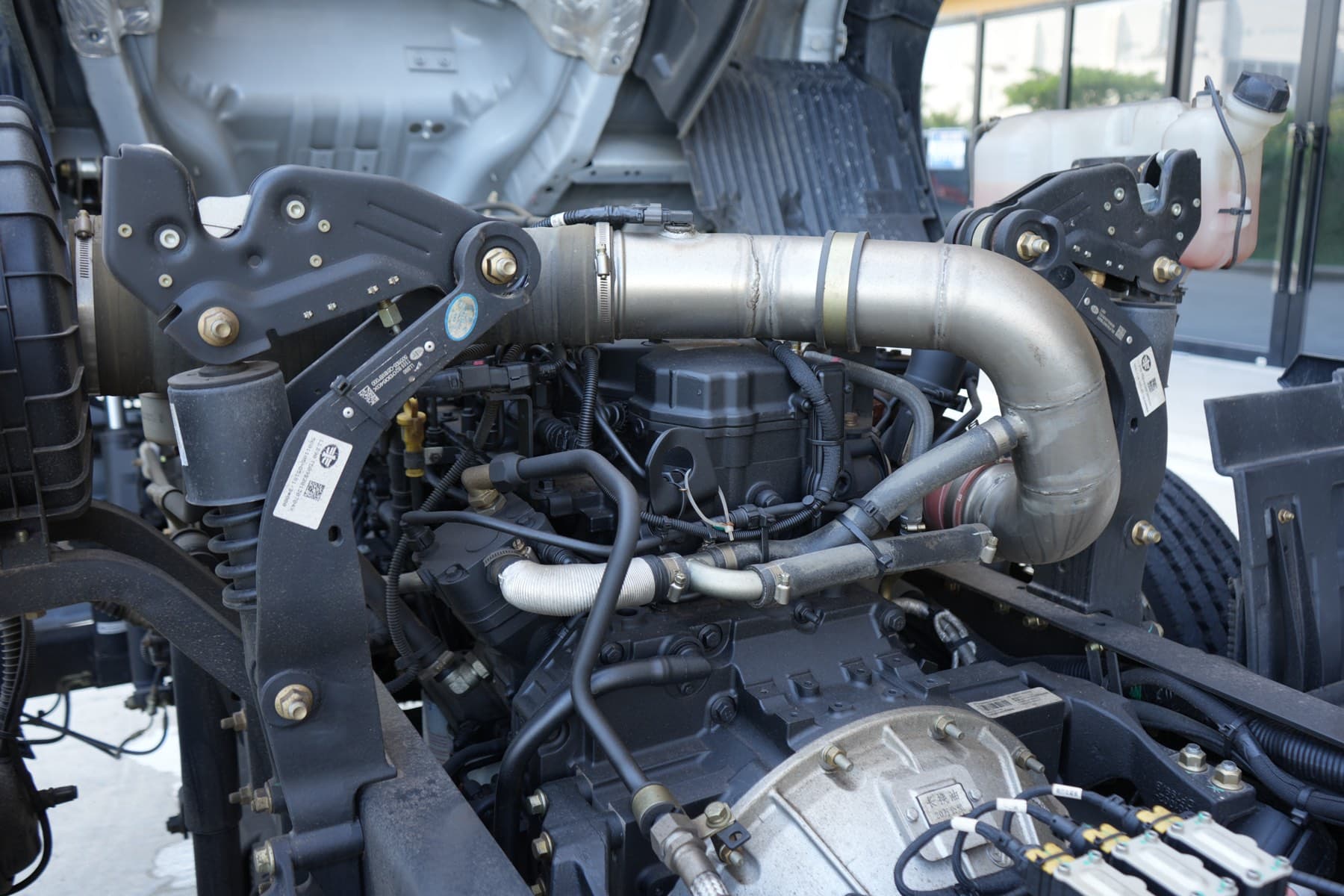

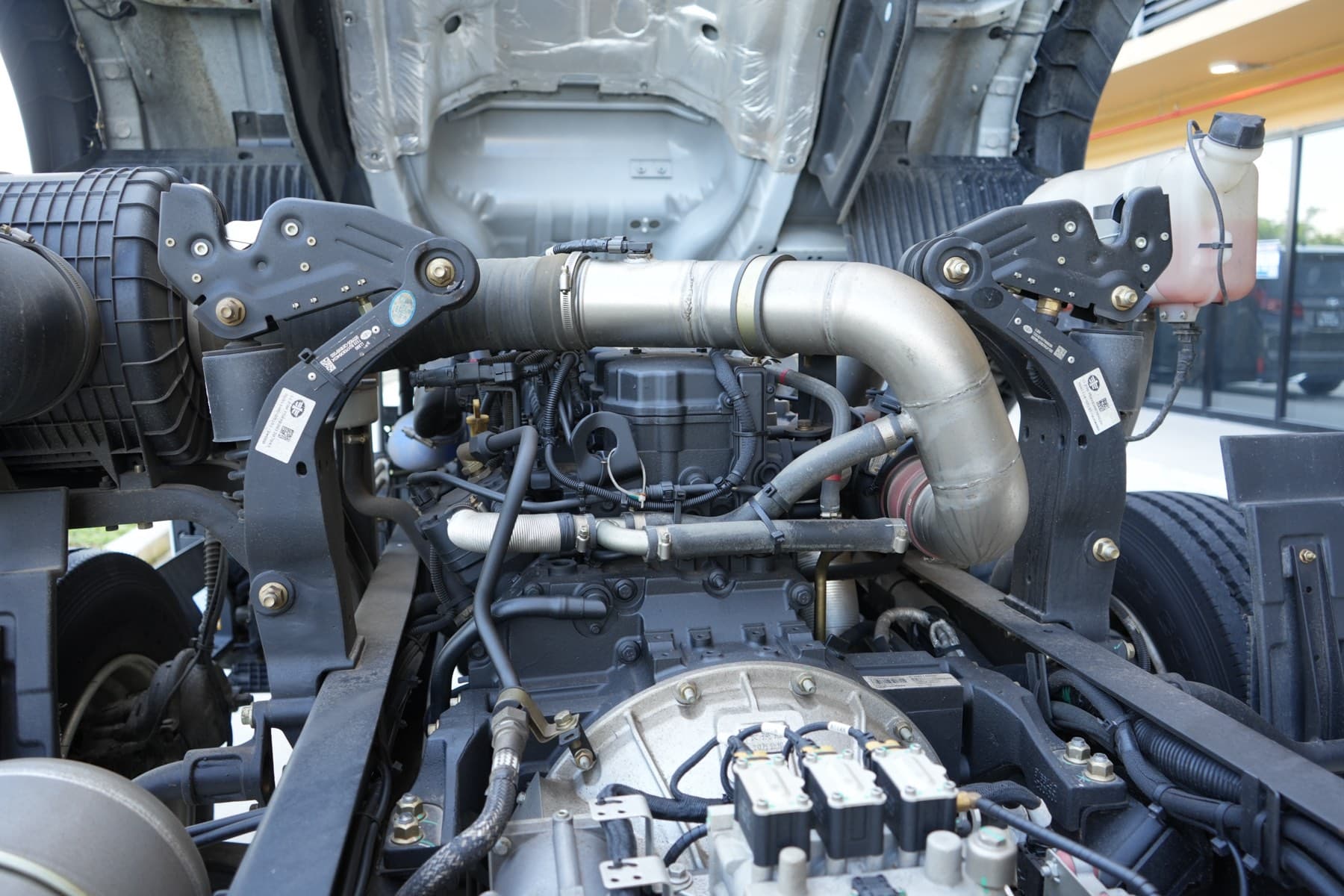

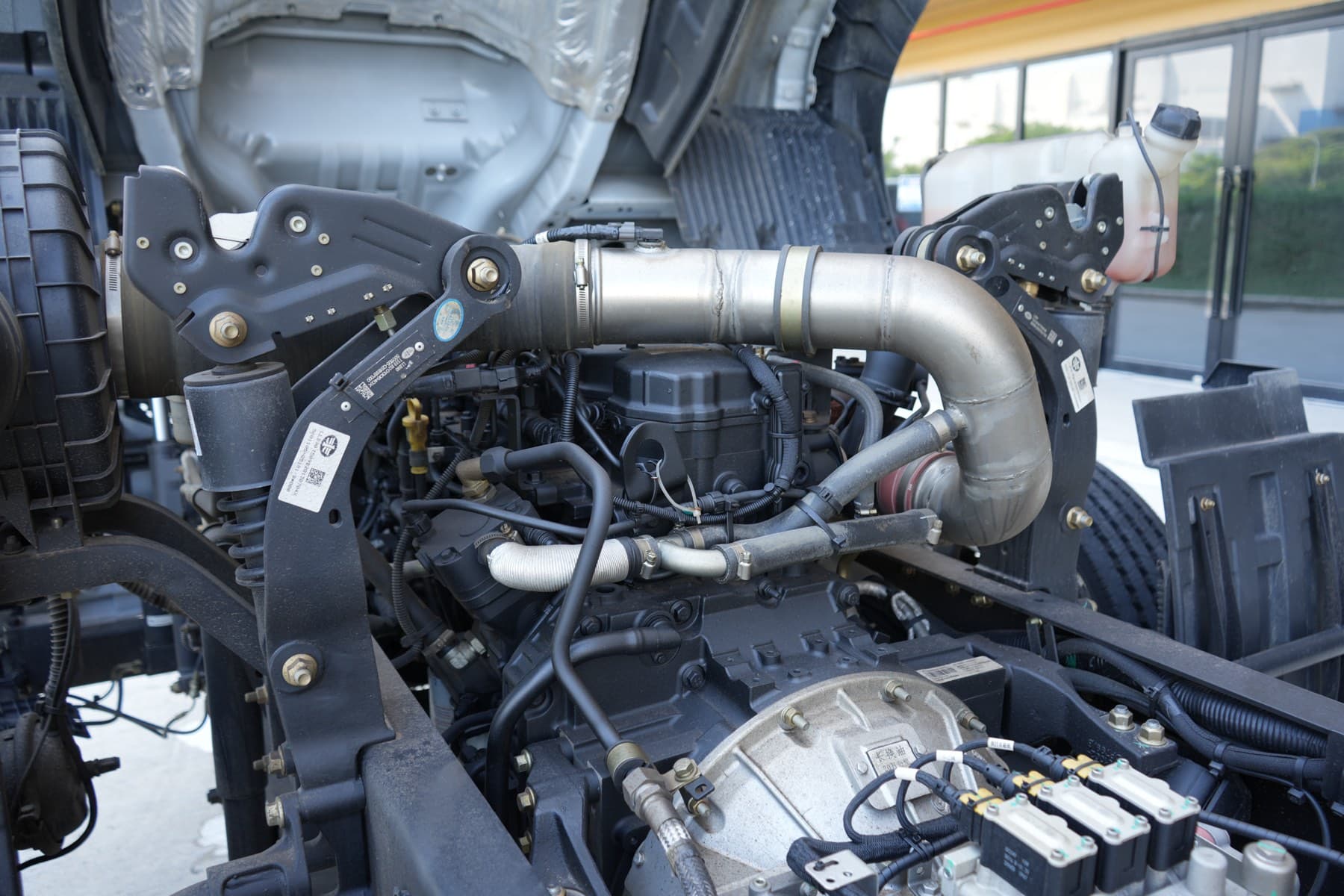

Engine发动机

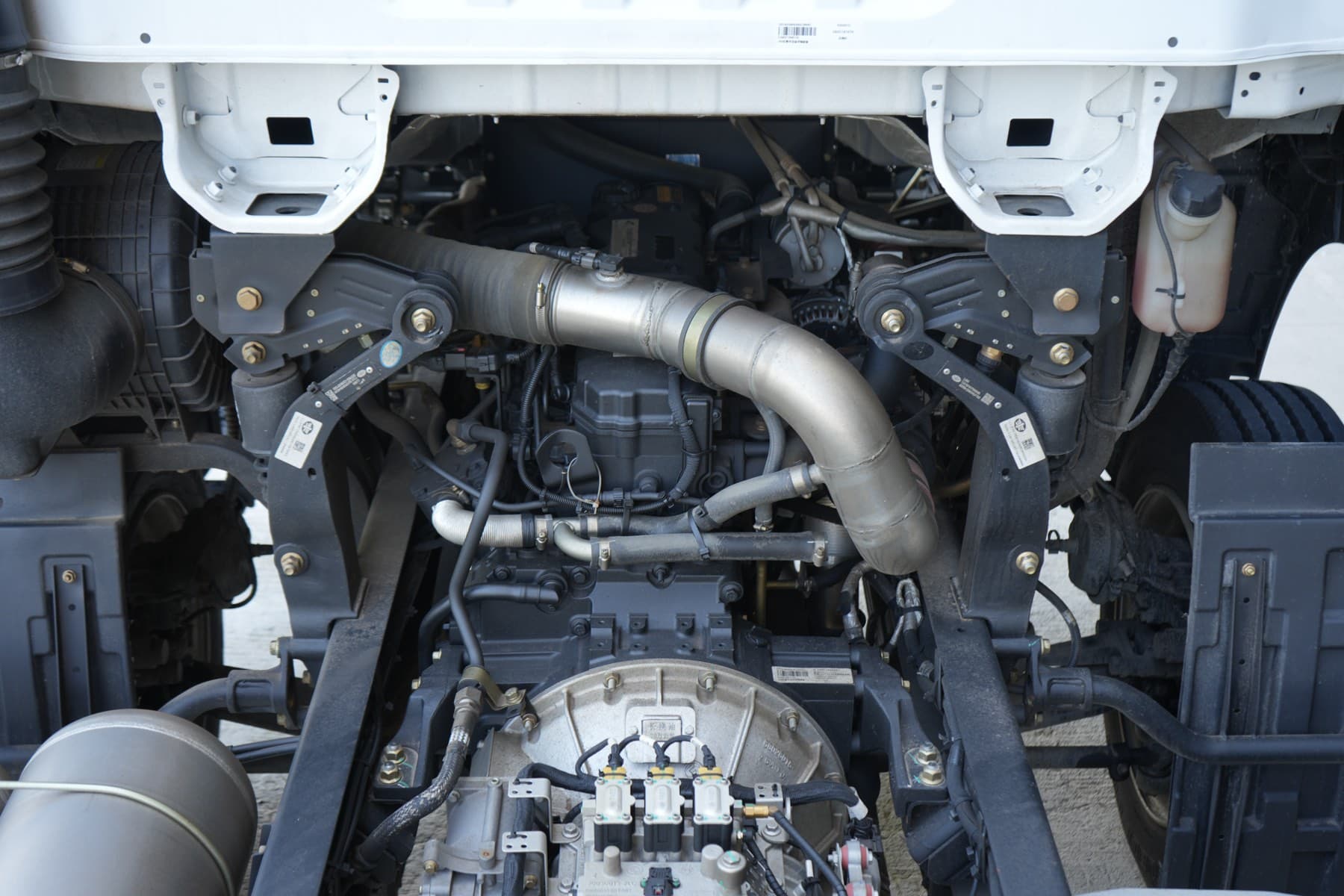

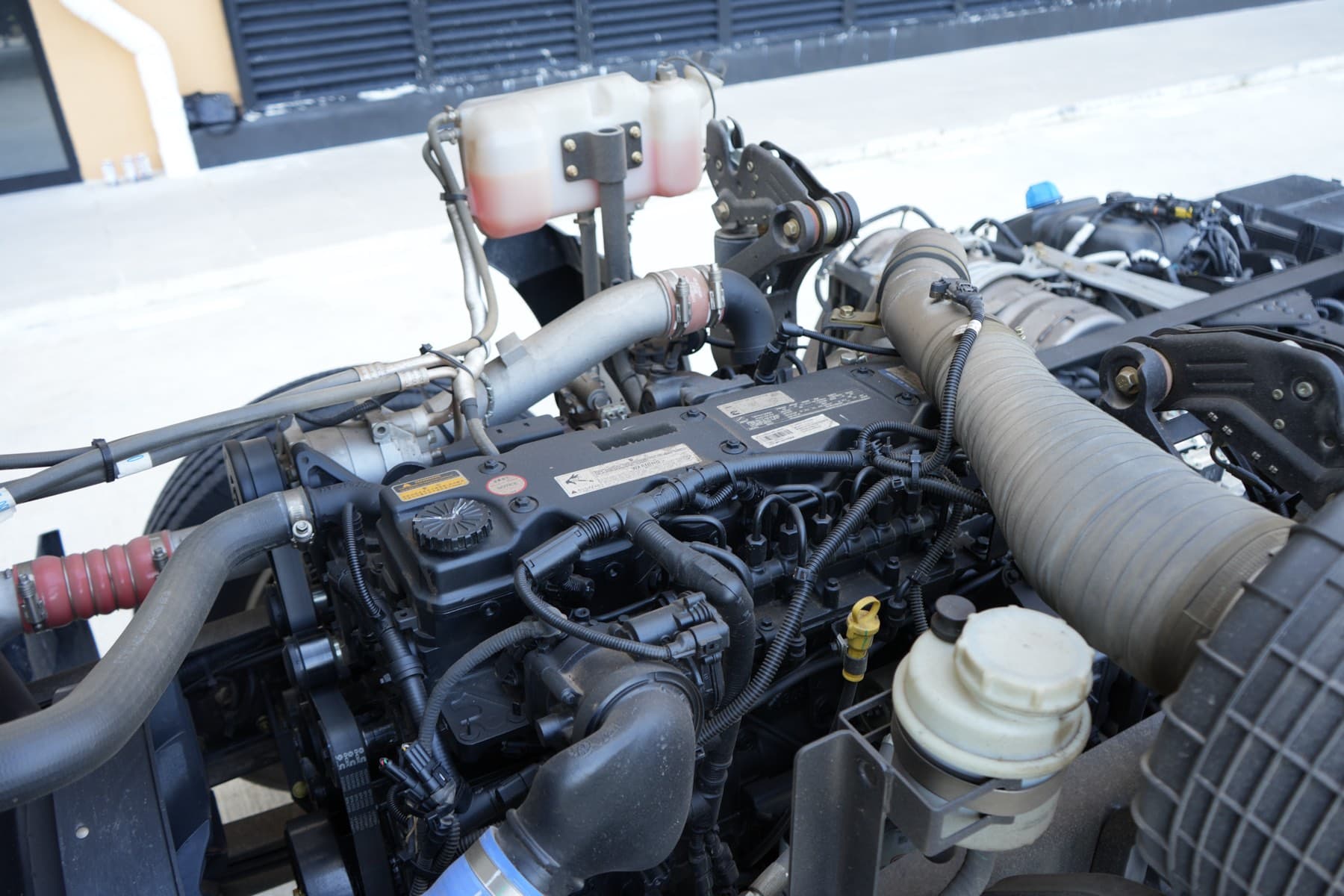

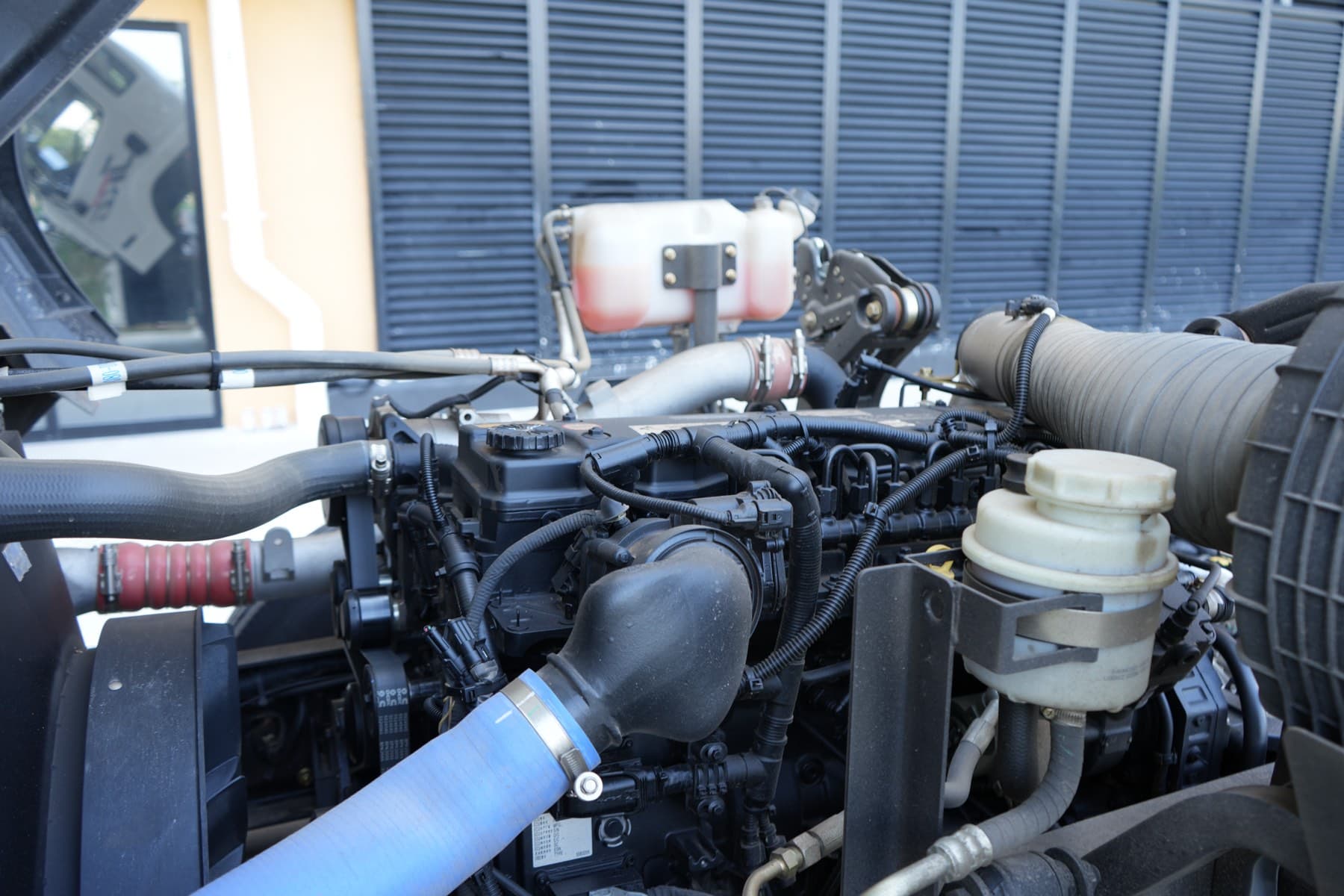

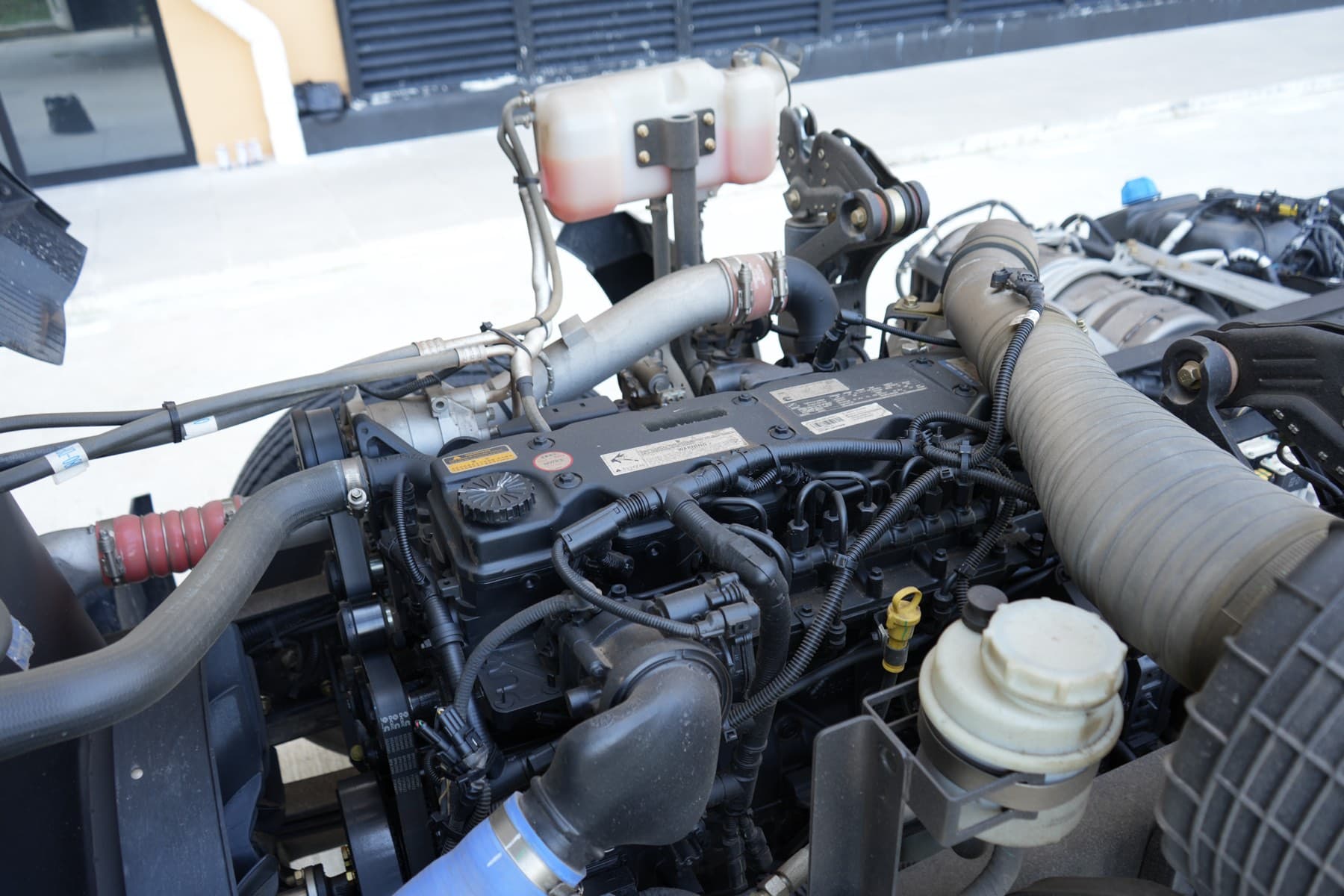

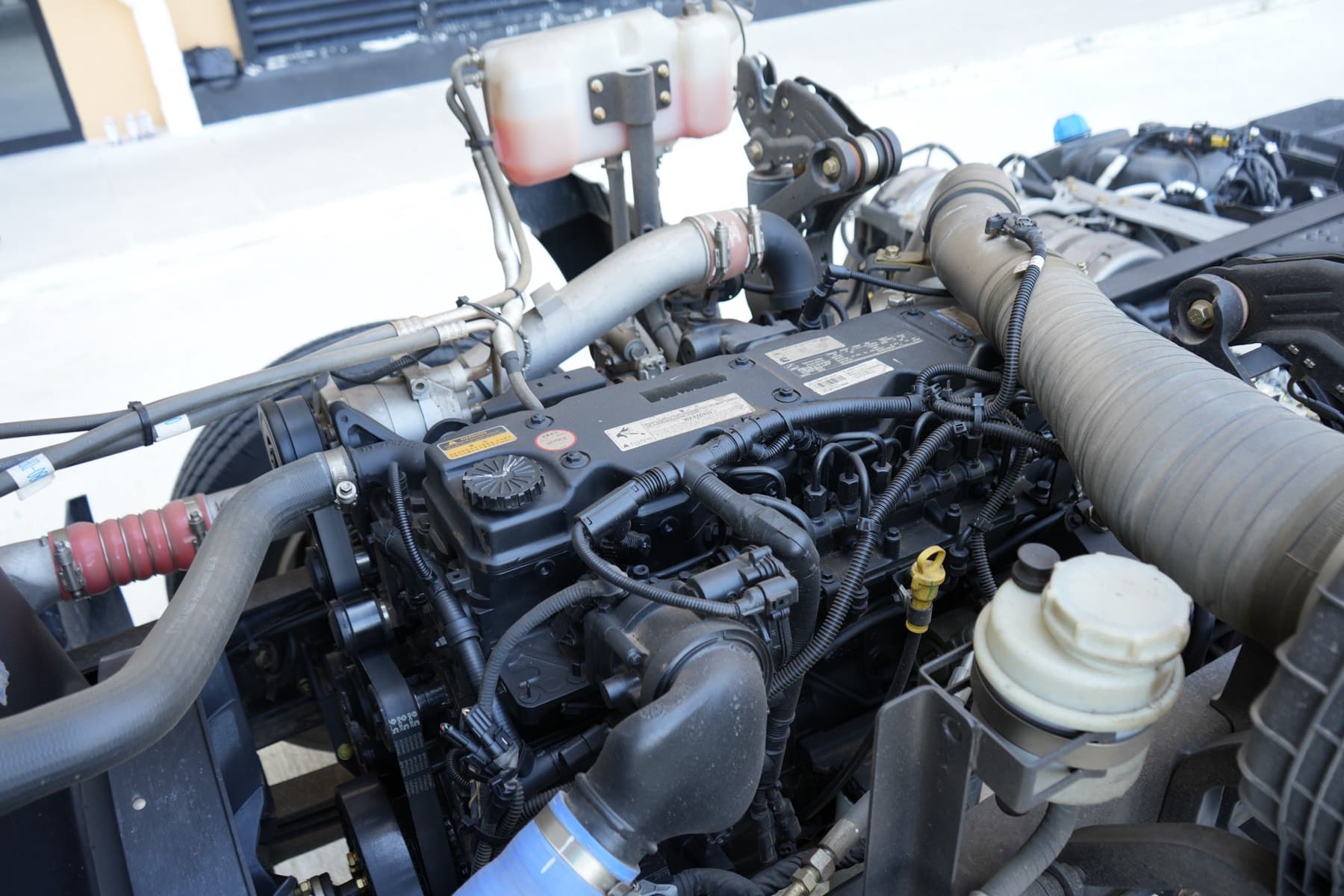

Cummins D6.7EVIE290 · 6.7 L · 6-cyl康明斯 D6.7EVIE290 · 6.7升 · 6缸
Max power最大功率
208 kW (279 hp) @ 2,300 rpm208千瓦(279马力)@ 2,300转/分
Max torque最大扭矩
1,100 N·m @ 1,100–1,600 rpm1,100牛·米 @ 1,100–1,600转/分

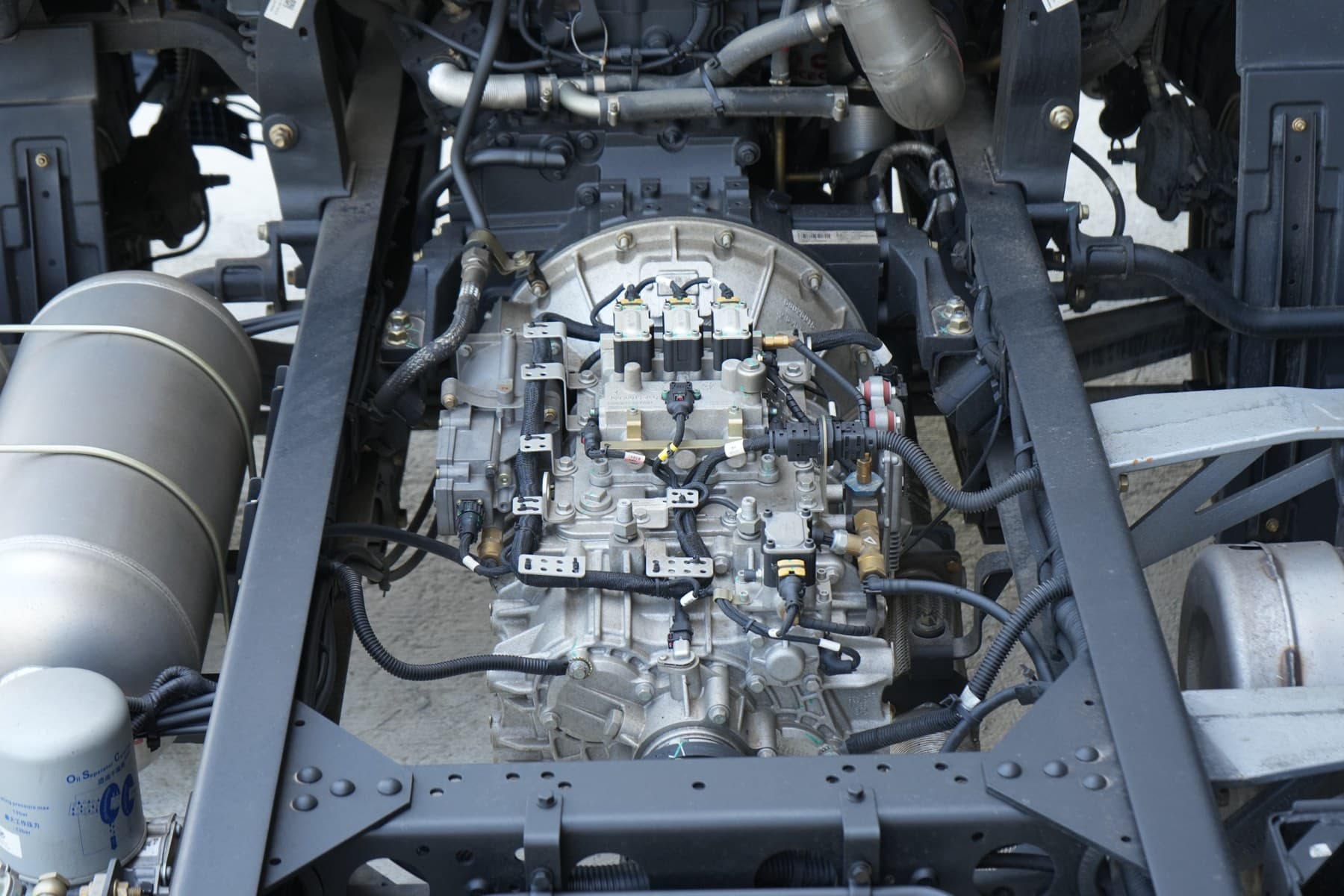

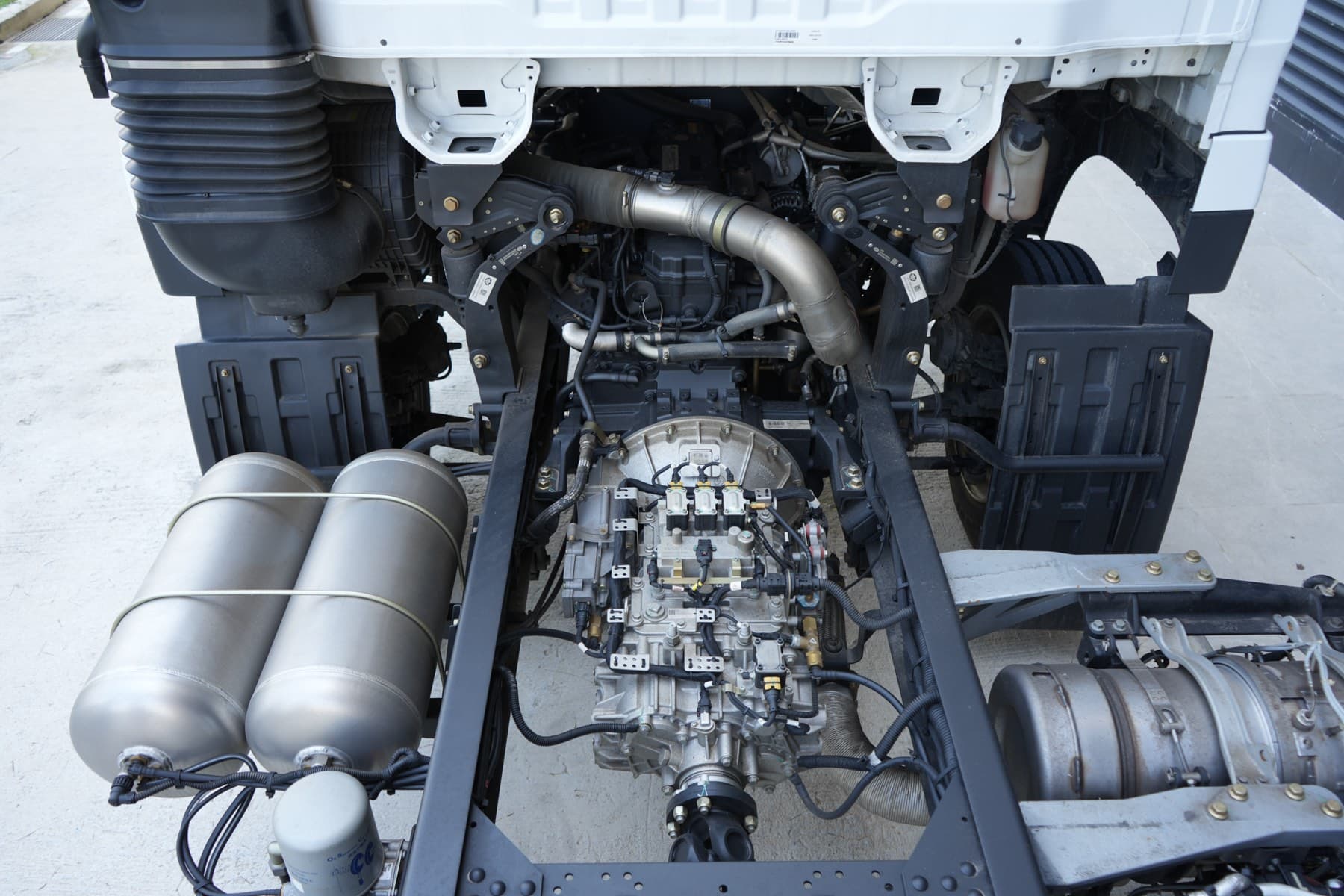

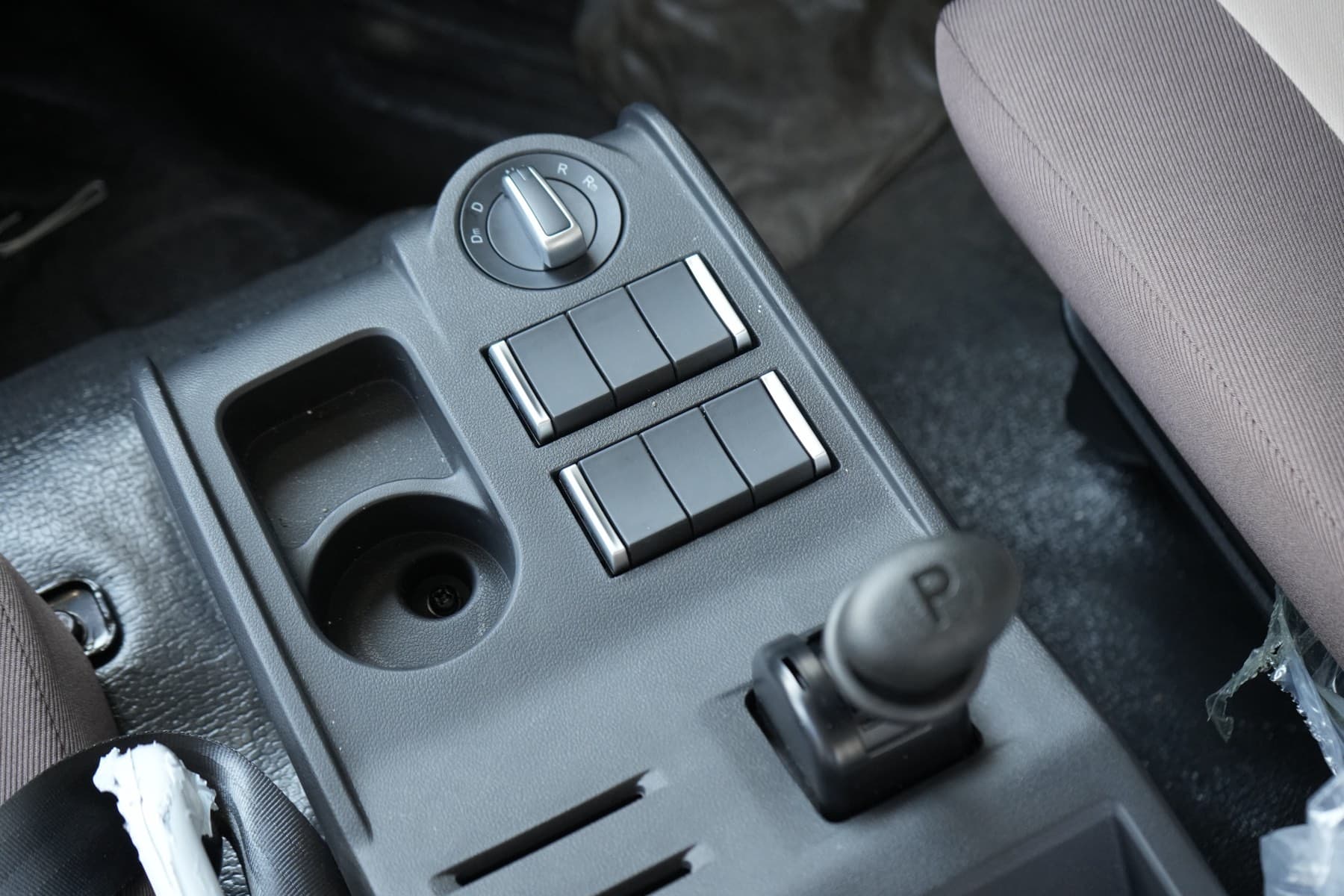

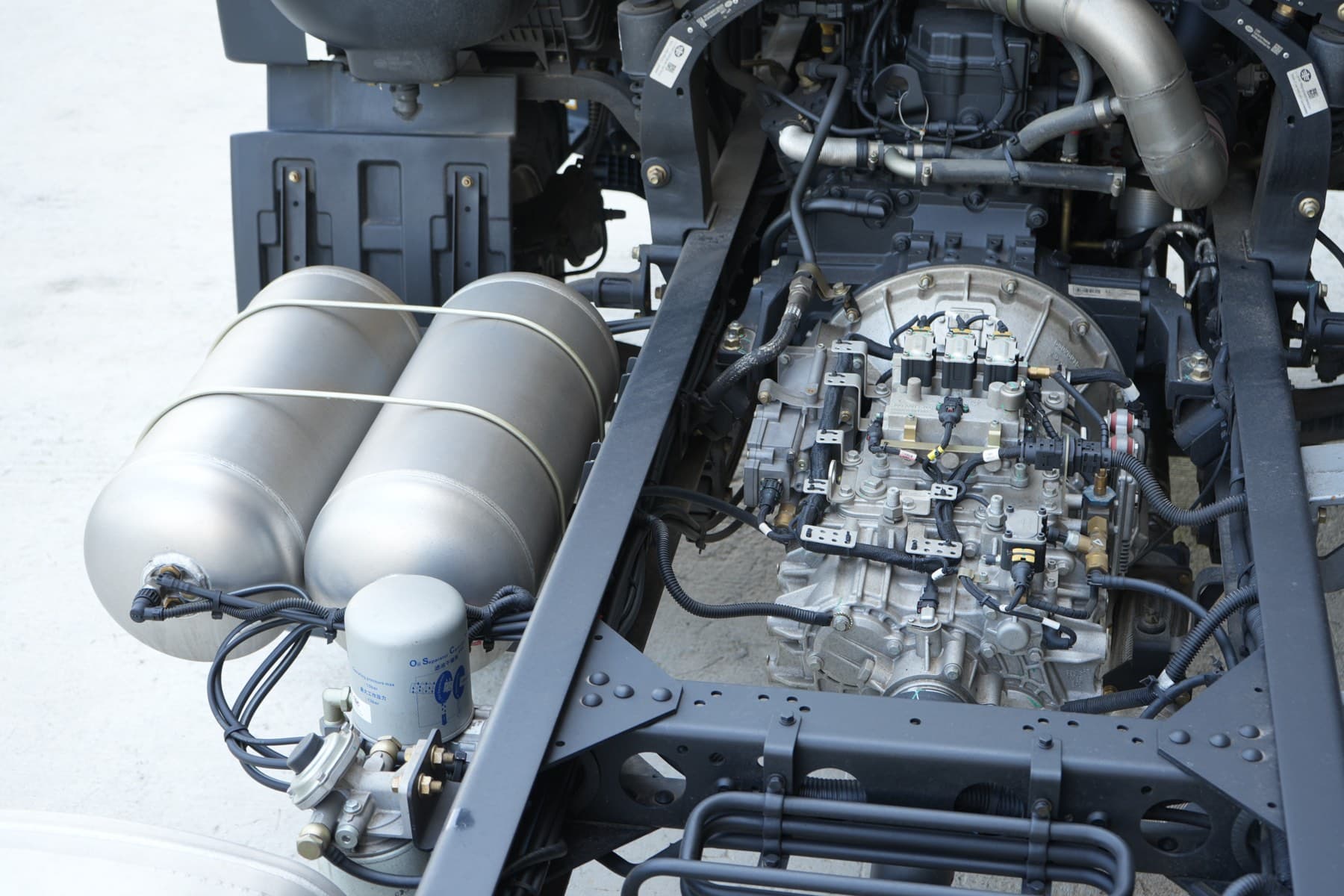

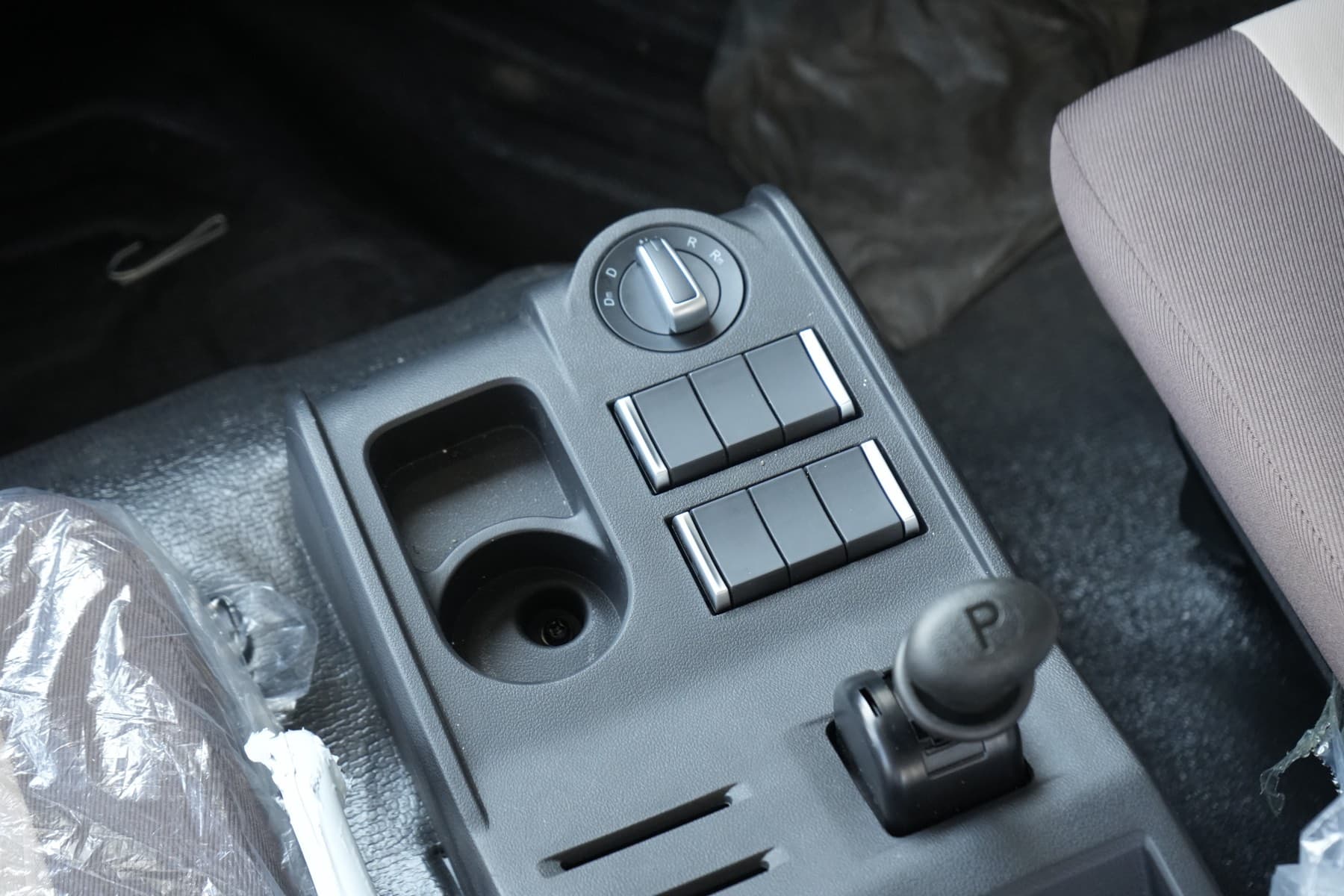

Transmission变速箱
AMTAMT自动挡
Cooling冷却系统
Crankshaft-driven electric controlled silicone oil fan曲轴驱动电控硅油风扇
Intake进气系统
Left-mounted grille intake duct · single air filter左置进气格栅导管 · 单级空气滤清器

Weights & Dimensions重量与尺寸

Overall length × width × height长×宽×高
9,510 × 2,484 × 2,800 mm9,510×2,484×2,800毫米
GVW总重
16,000 kg16,000公斤
Kerb weight整备质量
5,300 kg (front 3,200 / rear 2,100)5,300公斤(前3,200 / 后2,100)
Max front axle load前桥最大载荷
6,300 kg6,300公斤
Max rear axle load后桥最大载荷
10,500 kg10,500公斤
Wheelbase轴距
5,600 mm5,600毫米
Track width (front)前轮距
1,950 mm1,950毫米
Track width (rear)后轮距
1,878 mm1,878毫米
Min ground clearance最小离地间隙
256 mm256毫米
Min turning circle最小转弯直径
≤ 22 m≤ 22米

Brakes & Chassis制动与底盘

Service brake行车制动
Dual-circuit air brake双回路气刹
Parking brake驻车制动
Spring-actuated弹簧制动
Auxiliary brake辅助制动
Exhaust brake排气制动
Frame车架
Stamped-welded main beam · 237×75×6.5 mm冲压焊接主梁 · 237×75×6.5毫米
Tyres轮胎
275/70R22.5-16PR275/70R22.5-16PR

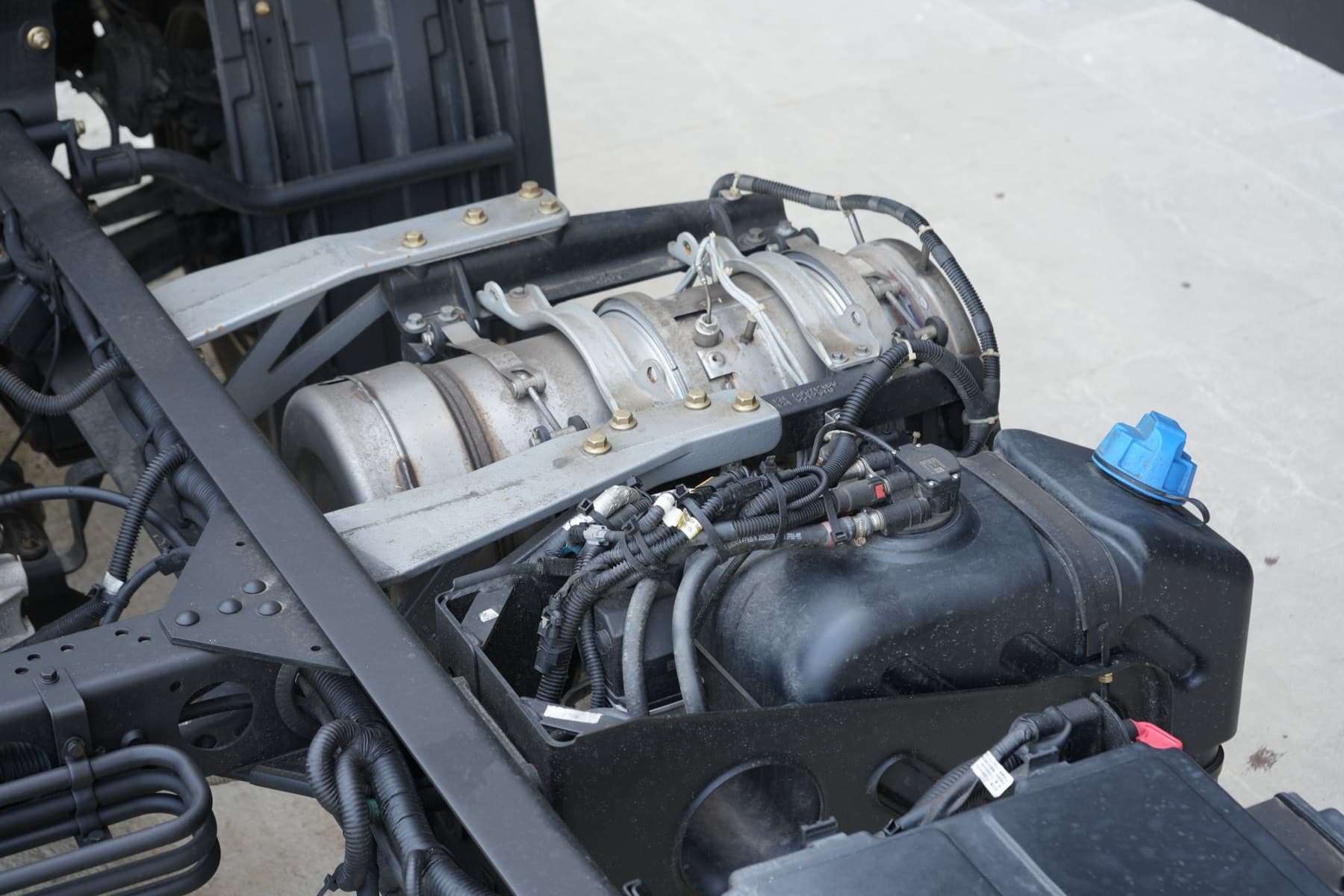

Fuel tank油箱
300 L + L80 Urea Tank300升 + L80尿素箱

Cab驾驶室

Type类型
Flat top hull floating cab平顶浮式驾驶室
Seating capacity乘坐人数
1 driver & 2 passengers驾驶员1名 + 乘客2名

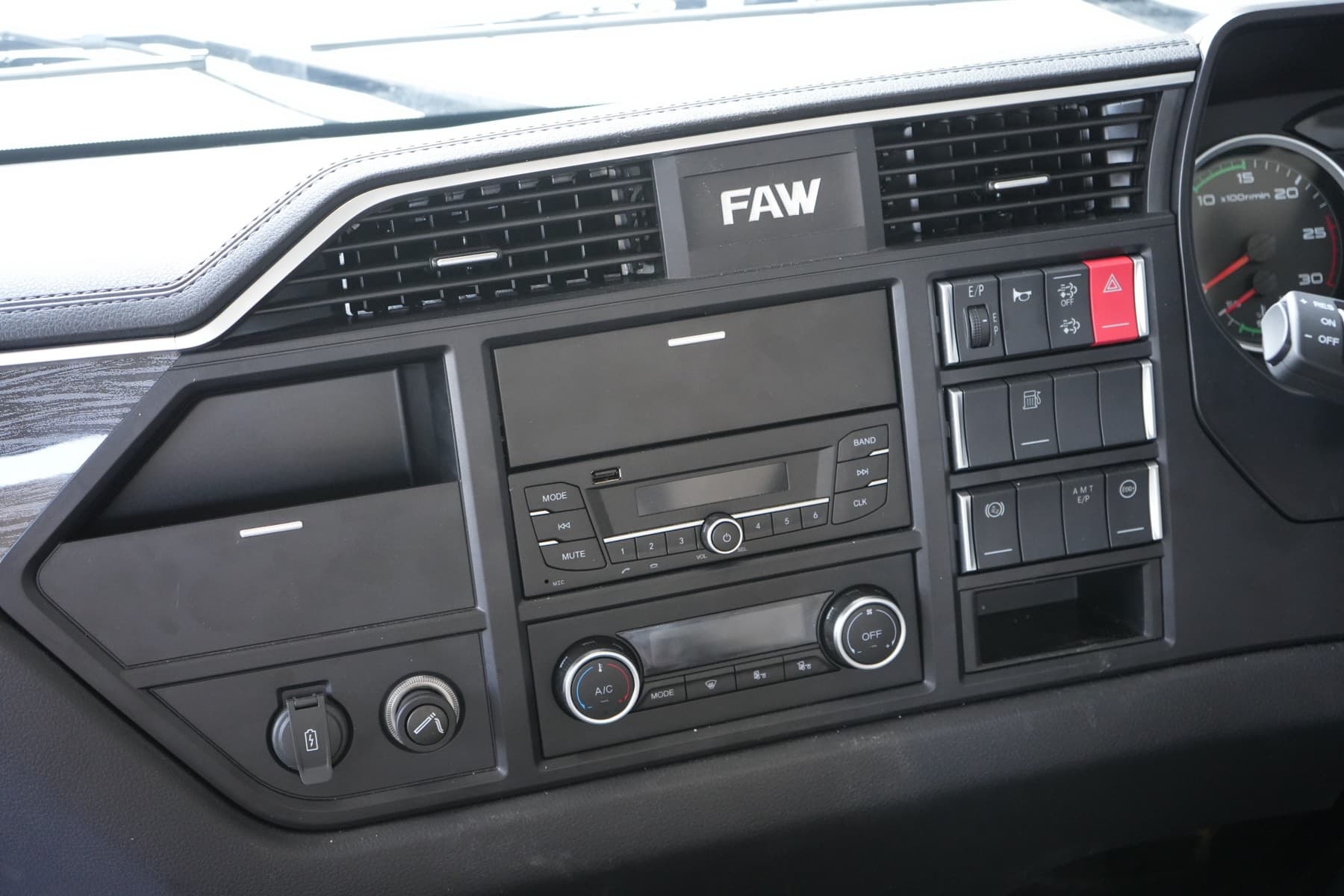

Features配置

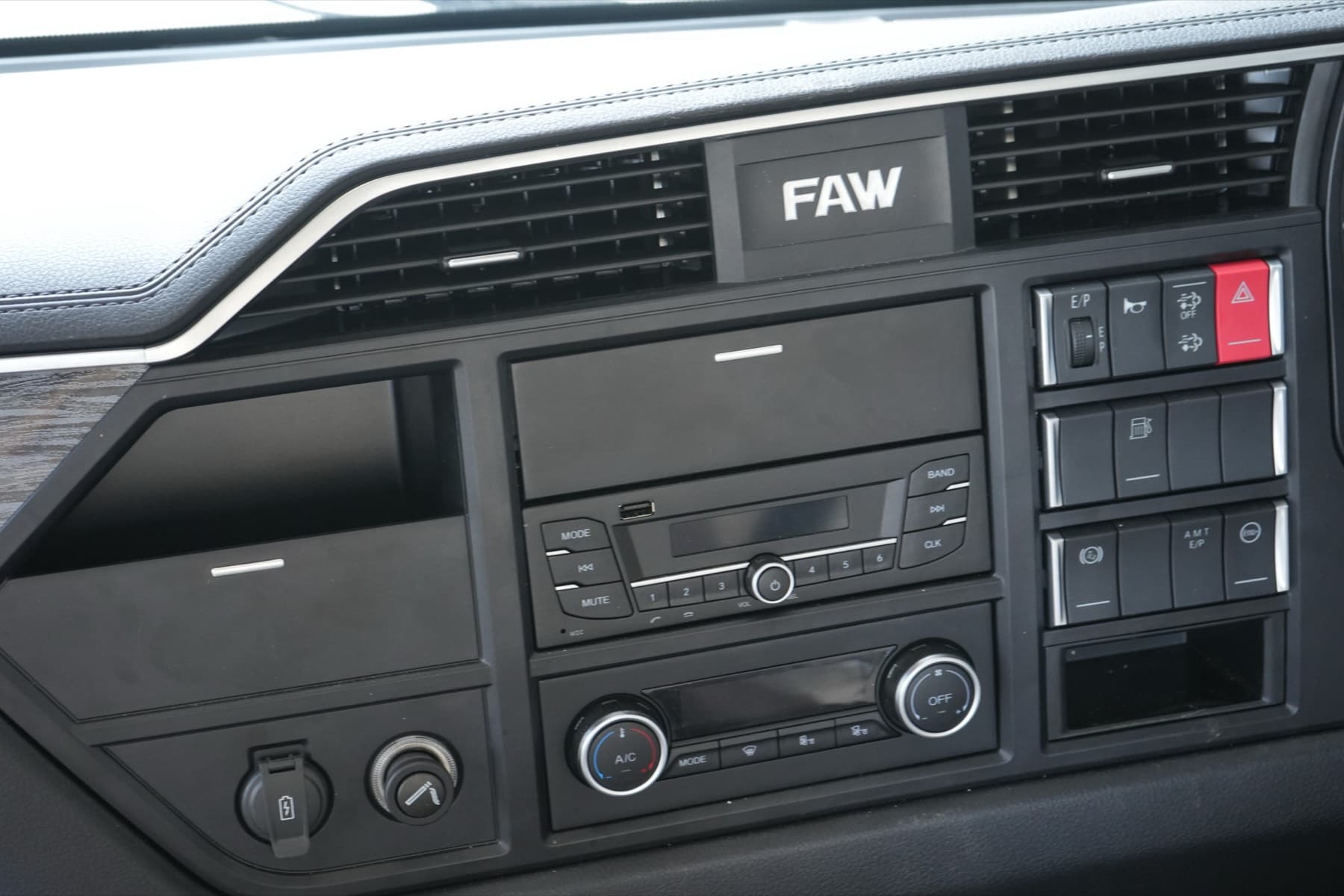

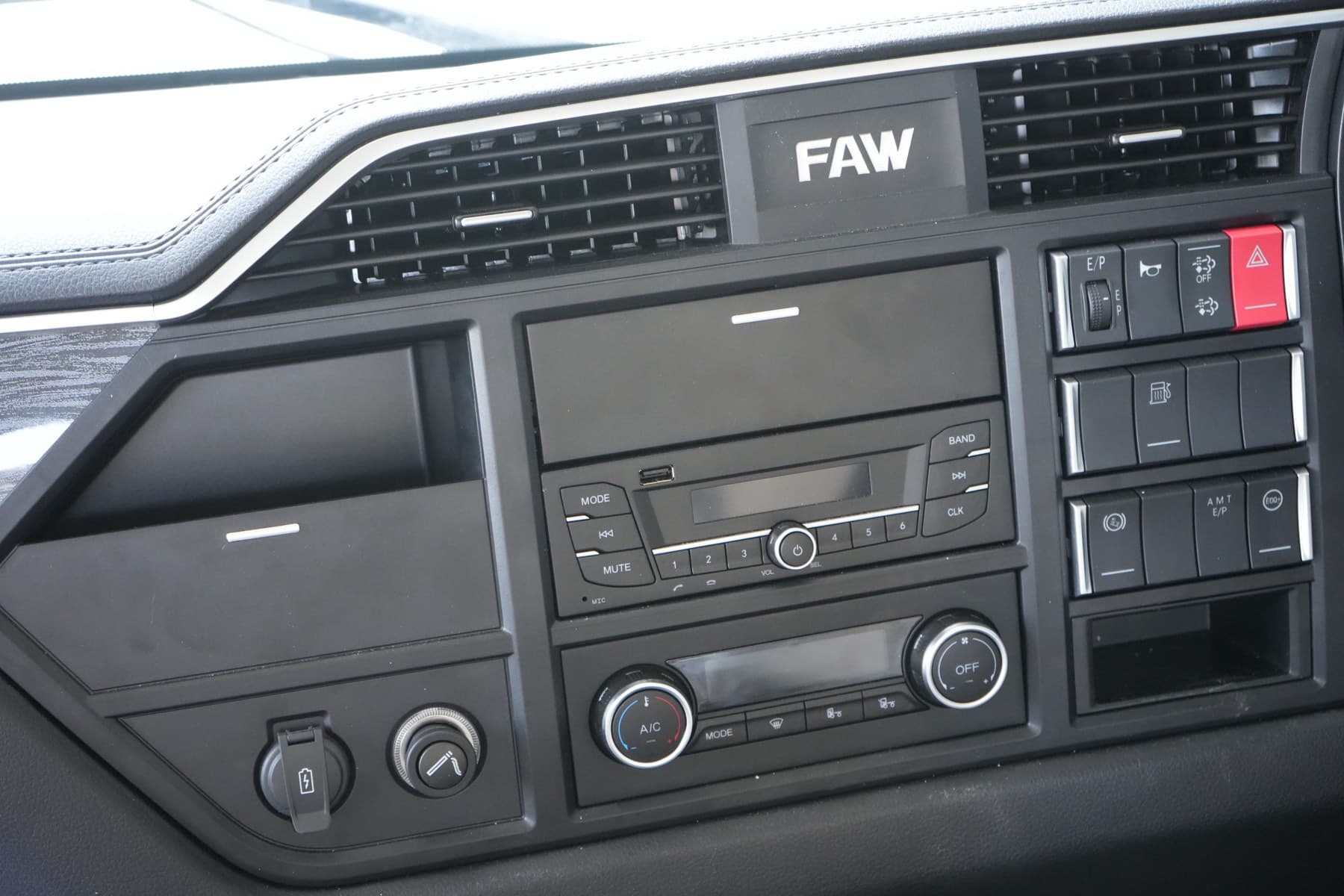

Power windows · Single-cooling A/C · Central Lock电动车窗 · 单冷空调 · 中控锁
Seats座椅
Grammer fabric ventilated seats格拉默透气布艺座椅

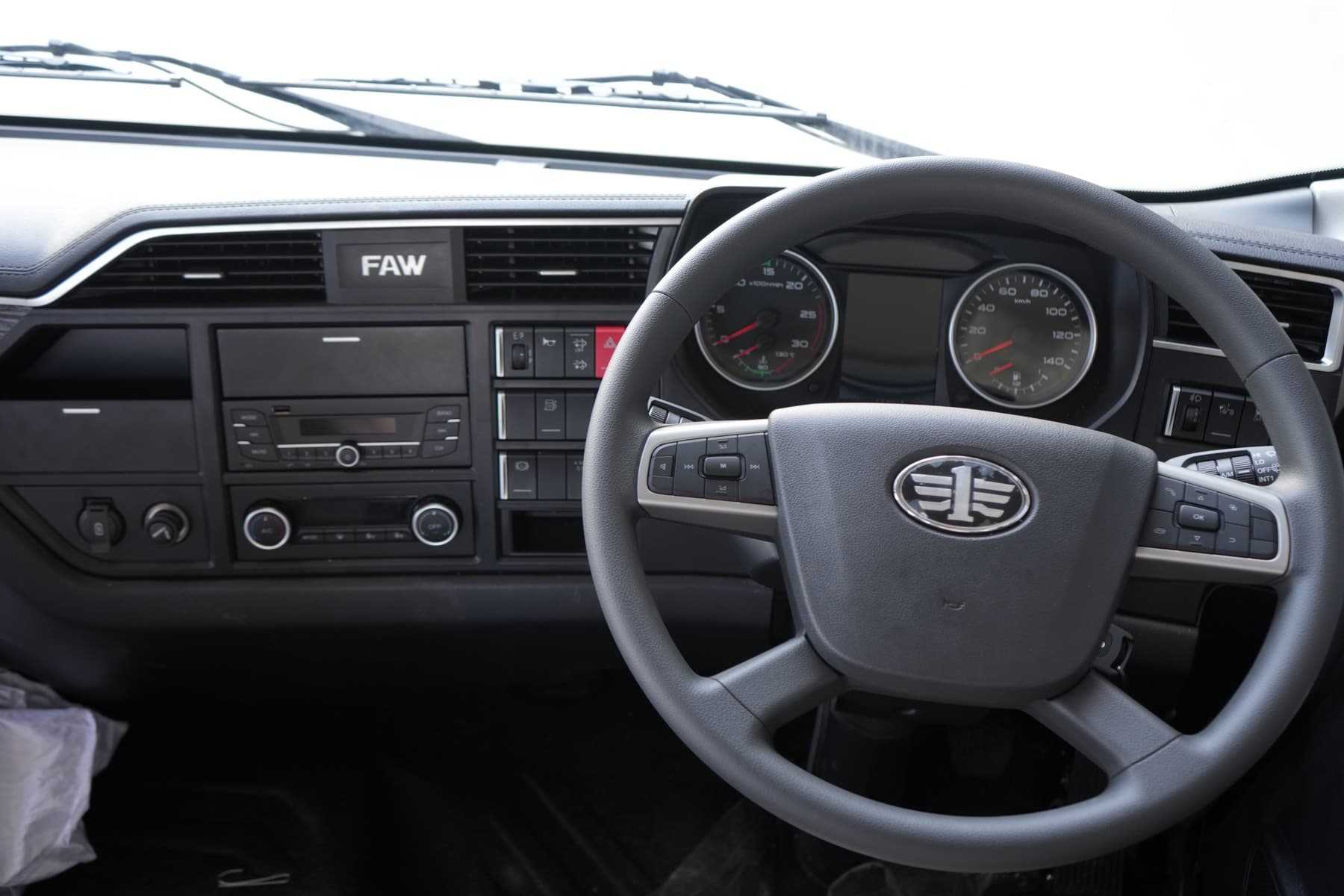

Display显示屏
10" display + 4-cam monitor10英寸显示屏 + 4路摄像头监控
Spare tyre备胎
Under rear suspension后悬架下方

Performance性能

Max speed最高车速
60 km/h60公里/小时
Max gradient最大爬坡度
32%32%
Parking brake gradient驻车制动坡度
18%18%
Fuel consumption燃油消耗率
194 g/kWh194克/千瓦时

Optional Equipment选配装备

Tailgate lift尾板升降机
1T / 1.5T / 2T capacity · 12V or 24V载重1吨/1.5吨/2吨 · 12V或24V
Main platform主体平台
High-strength steel (T700) or aluminium alloy (A6005-T6)高强度钢(T700)或铝合金(A6005-T6)
Plate dimension平台尺寸
(1.8–2.5) m × (1.5–1.8) m(1.8–2.5)米 × (1.5–1.8)米

Free maintenance免费保养

Scheduled service, on us.定期保养,免费为您服务。

First Maintenance首次保养

5,000 km

  • Inspect all fasteners, fluid levels, and overall vehicle condition检查所有紧固件、各项液位及车辆整体状况

2nd Scheduled Service第2次定期保养

30,000 km

  • Change engine oil更换机油
  • Replace oil filter更换机油滤清器
  • Replace air filter更换空气滤清器
  • Replace diesel filter更换柴油滤清器
  • Grease all fittings / Apply grease所有黄油嘴加注润滑脂

3rd Scheduled Service第3次定期保养

45,000 km · 6 months6个月

  • Inspect and tighten mounting bolts; check torque values and related items检查并紧固各安装螺栓;核查扭矩值及相关项目
  • Replace urea tank filter / Replace AdBlue filter更换尿素箱滤芯 / 更换AdBlue滤芯
  • Drain water from diesel pre-filter / primary diesel filter排出柴油预滤器/主滤清器内的积水

4th Scheduled Service第4次定期保养

60,000 km · 12 months12个月

  • Change engine oil更换机油
  • Replace oil filter更换机油滤清器
  • Replace air filter更换空气滤清器
  • Replace diesel filter更换柴油滤清器

5th Scheduled Service第5次定期保养

90,000 km

  • Replace drive axle lubricating oil更换驱动桥润滑油

Warranty coverage保修范围

Coverage depends on how you register it.保修范围因注册用途而异。

Highway-Grade Medium and Heavy-Duty Trucks公路型中重型卡车

Whole vehicle整车
1 year1年
Powertrain动力总成
3 years (engine, transmission, drive axle)3年(发动机、变速箱、驱动桥)
Mileage cap里程上限
200,000 km

Off-Highway Medium and Heavy-Duty Trucks非公路型中重型卡车

Whole vehicle整车
1 year1年
Powertrain动力总成
2 years (engine, transmission, drive axle)2年(发动机、变速箱、驱动桥)
Mileage cap里程上限
100,000 km

Aftercare售后服务

Parts. Service. Warranty.配件。服务。保修。

Warranty保修

200,000 km / 3 yr20万公里 / 3年

Whole vehicle: 1 year. Powertrain (engine, transmission, drive axle): 3 years / 200,000 km for highway-grade registration, or 2 years / 100,000 km for off-highway use.整车保修1年。动力总成(发动机、变速箱、驱动桥):公路型注册为3年/20万公里,非公路用途为2年/10万公里。

Parts availability配件供应

JK6 platform parts stocked at our Kranji and Tuas warehouses. Common filters and consumables available same-day.JK6平台配件常备于克兰芝与大士仓库,常用滤芯及易损件当日可取。

Financing融资

Hire-purchase from 3.48% p.a. via 1 Accurate Credit, our financing partner. Indicative quote within 48 hours.分期付款年利率低至3.48%,经由融资合作伙伴1 Accurate Credit办理,48小时内提供初步报价。

See financing →查看融资方案 →

See also延伸阅读

  • FAW JH6 8x4 heavy-duty truck — image 1In stock现货

    Heavy Duty重型

    JH6 Heavy-duty TruckJH6 重型卡车

    JH6 8×4

    GVW总重
    46,500 kg46,500公斤
    Power功率
    333 kW (447 hp)333千瓦(447马力)
    Configuration驱动形式
    8×48×4

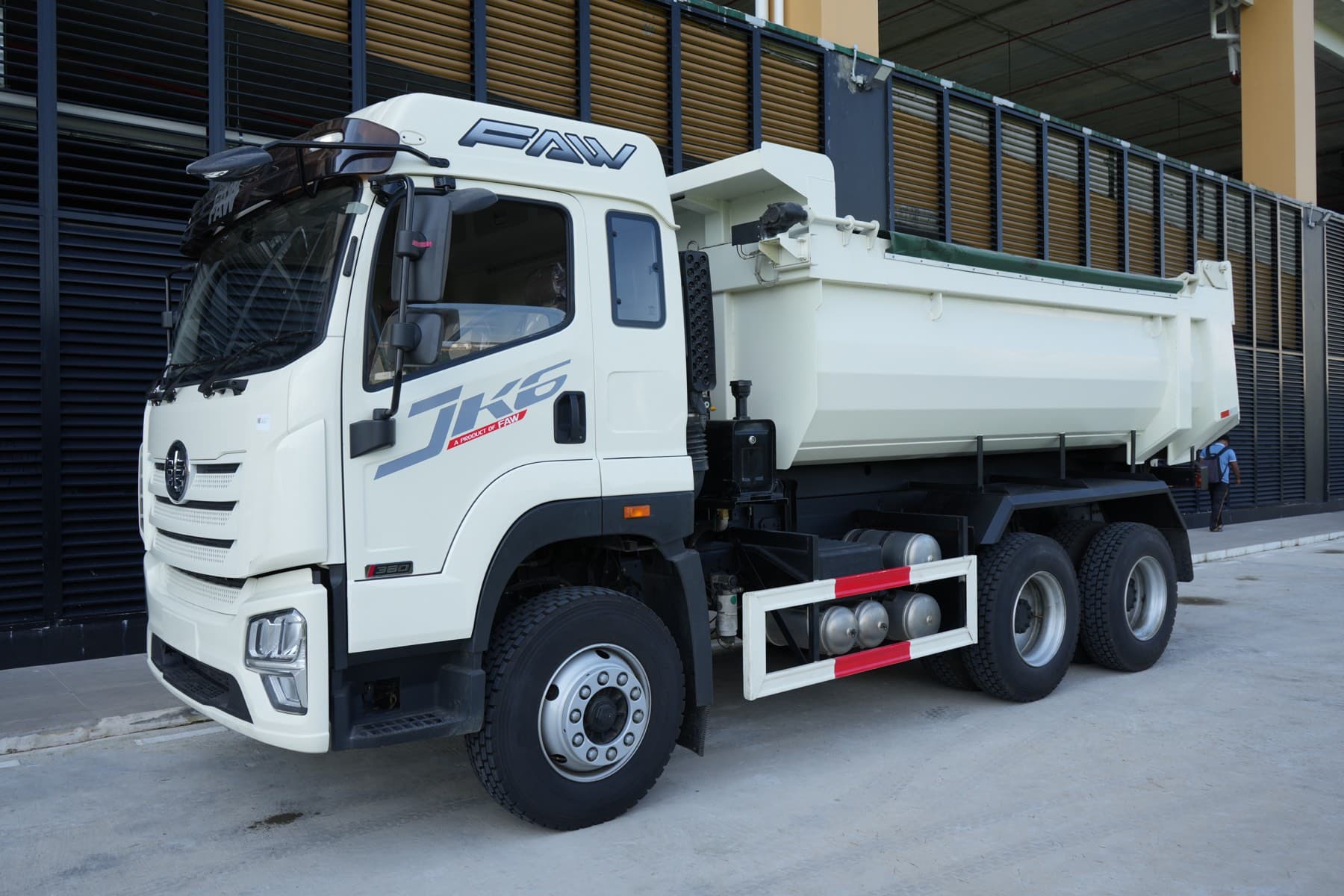

  • FAW JK6 6x4 medium truck — image 1
